BL-00800-MAGN40 - Datasheet

MBA

Category Information

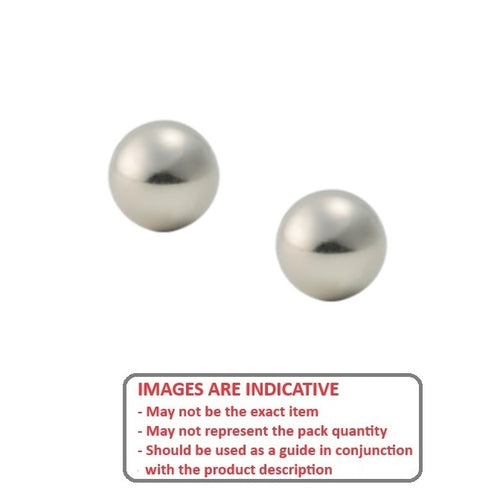

Balls - Metallic - Magnetic

Magnetic Metallic Balls. Please note that ball magnets are not to be used as toys. These are a strong magnet must be kept away from children as serious harm may result from ingestion.

  • Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
  • General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
  • For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.

Product Data

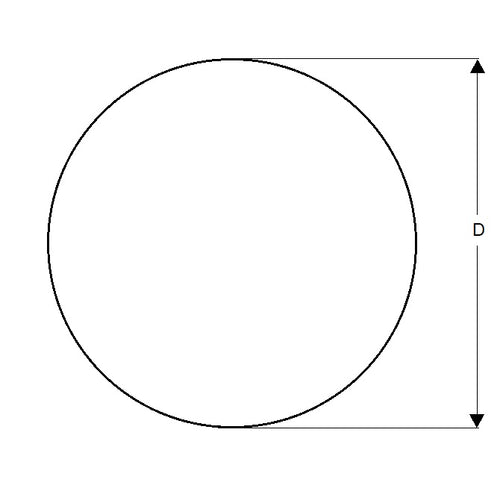

  • Diameter (D) : 8.000 mm
    (Equiv. 0.315 in.)
  • Material Neodymium N-40
  • Properties Used widely in various cutting-edge fields such as in cell phones, HDDs, hybrid cars, etc
  • Colour Ni plating
  • Notes Absorption Power 9 N
  • Material Neodymium N-40
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Misumi NOB14
