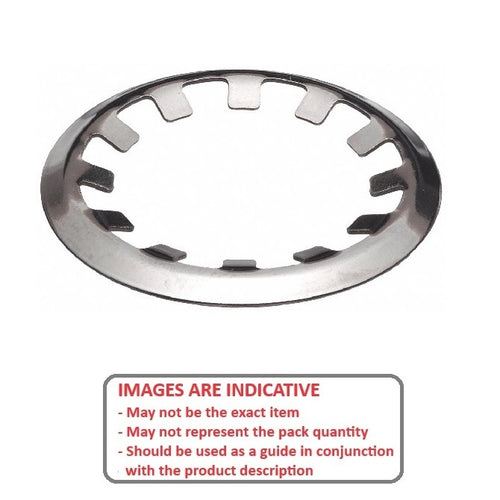

RPO-089-090-SP15 - Datasheet
MBA
Category Information
Retaining Rings - Push On - Stainless SteelStainless Steel Push On Retaining Rings. Rotor Clip TY. Stainless Steel hardness HR15N 82.5-86
- An expanded range may be available on special order. Please enquire.
- PH 15-7/17-7 Stainless Steel and 1.4310 Stainless Steel
Product Data
- Min shaft size (s1) : 8.95 mm
- Max Shaft Size (s2) 9.00 mm
- Outside diameter (D1) 18.44 mm
- Min shaft extension (n1) 1.02 mm
- Height (H) Max. 2.000 (Capped Edges) mm
- Material Thickness (t) 0.305 mm
- Approx. Thrust Load 100 kg
- Number of prongs 6
- Approx. Push On Force 21 kg
- Material Stainless Steel Grade PH15-7-17
Product Compliance and Data
Additional Resources
Cross References
- Bossard® 3820285
- ExaktKey® S6708
- NoCor® S6708
- Springmaster S6708
- Starlock® S6708
- XOSpring® S6708
