CFB008-08-030M-R60 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 8.00 mm
    (Equiv. 0.315 in.)
  • Body Height (H) 8.00 mm
    (Equiv. 0.315 in.)
  • Thread Size M3x0.5
  • Shore Hardness 60
  • Thread Depth (L2) 3.0 mm
  • Max Shear Load 121 Kg (lbs)
  • Configuration Female to Blank
  • Other Info 72.00
  • Material Natural Rubber
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-DE0808-3
  • CDE08083
View full details

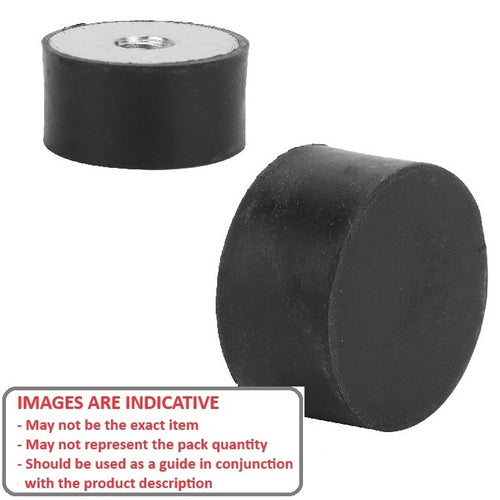

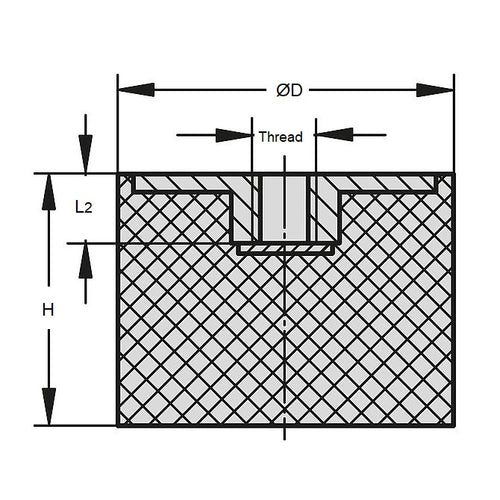

CFB008-08-030M-R60DiagramCFB008-08-030M-R60Image
