CCE-00874-B - Datasheet
MBA
Category Information

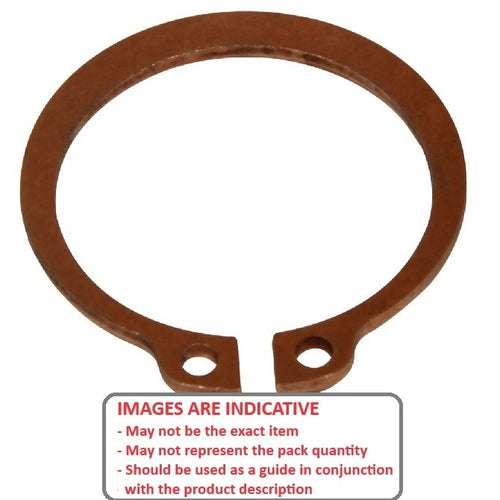

Retaining Rings - External - Circlips - Standard - Beryllium CopperBeryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
Product Data
- Shaft Diameter (Ds)
:
8.74
mm
(Equiv. 0.344 in.) - Clip Thickness (T)
0.64
mm
+/- 0.051
(Equiv. 0.025 in.) - Groove Dia. (Dg)
8.20
mm
+/- 0.051
(Equiv. 0.323 in.) - Approx. Loose Circlip ID (A) 7.85 mm
- Groove Width (W) 0.70 mm
- Clearance on Shaft (C1) 14.48 mm
- Clearance in Groove (C1) 13.97 mm
- Min. Extension (n) 0.97
- Standard MIL-16624
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-034-BC
- SH034BC
- N1400-0034BC
- N14000034BC
