ES-0800-0600-12-M - Datasheet
MBA
Category Information

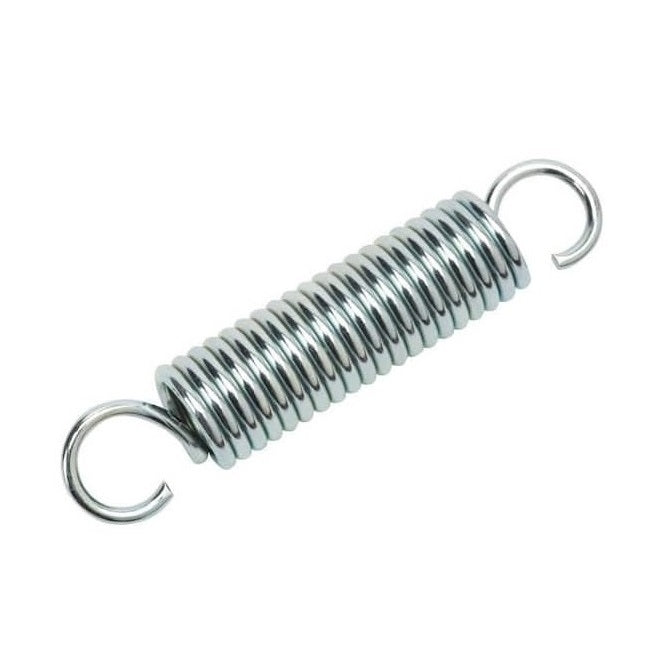

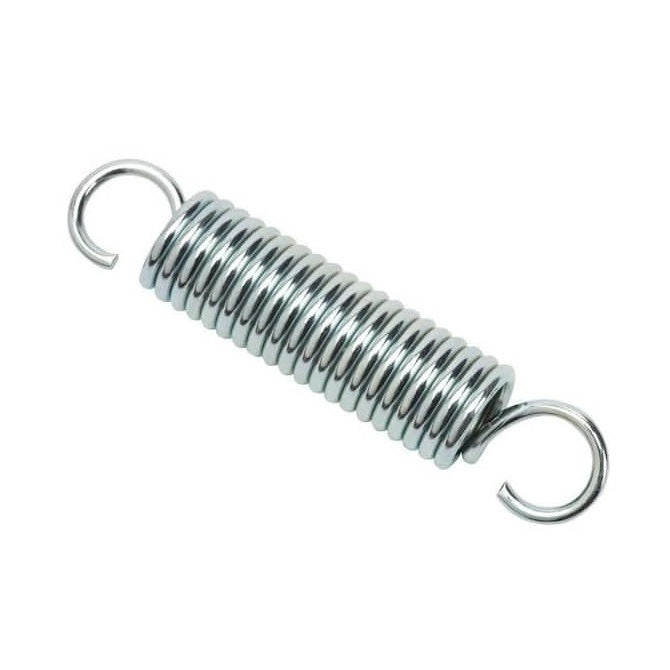

Springs - Extension - Music WireMusic Wire Extension Springs. Carbon spring steel, zinc plated selection.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).
Product Data
- OD (D0)
:
8.00
mm
(Equiv. 0.315 in.) - Overall Length (L0)
60
mm
(Equiv. 2.362 in.) - Wire Diameter (d)
1.200
mm
(Equiv. 0.047 in.) - Max. Extension (L1) 78.80 mm
- Spring Rate 1.67 N/mm
- Initial Tension (IT) 9.8 N
- Load at L1 41.19 N
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-AWT8-60
- Misumi C-WAWT8-60
- CWAWT860
- CAWT860
