C-HXNN8-6 - Datasheet

MBA

Category Information

Magnets - Cylinder - Boron

Boron Cylinder Magnets. This is the main category in this series

    Product Data

    • Diameter : 8.00 mm
      (Equiv. 0.315 in.)
    • Length (A) 6.0 mm
      (Equiv. 0.236 in.)
    • Surface Treatment Nickel Plating
    • Attraction Force 26.76 N
    • Heat resistant Temp 60.00 Deg C
    • Material Neodymium Iron Boron
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Misumi C-HXNN8-6
      • CHXNN86
      View full details

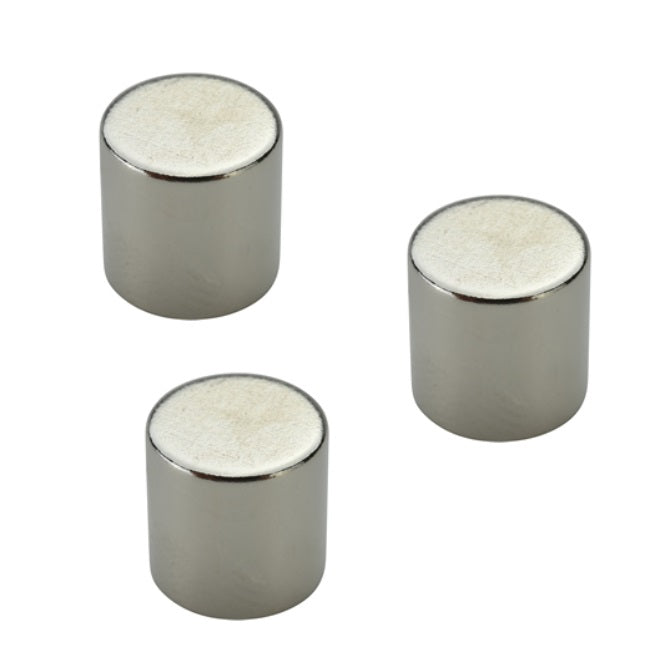

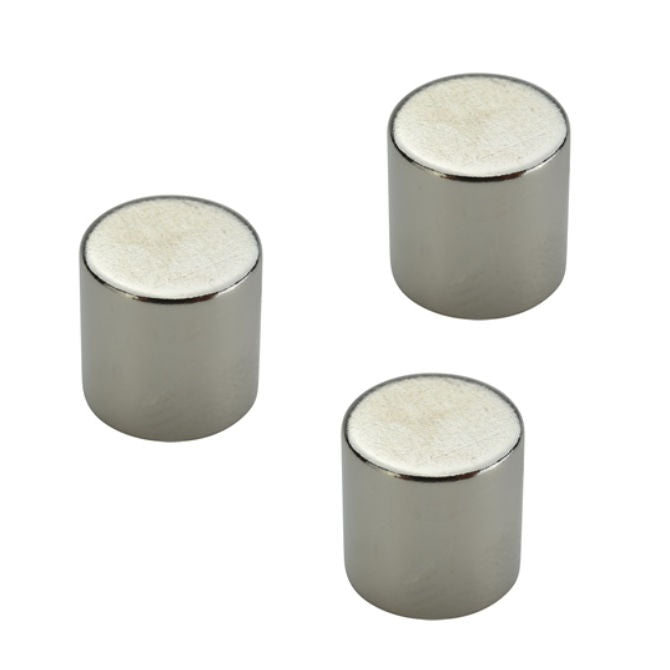

      C-HXNN8-6DiagramC-HXNN8-6Image
