UFL08N - Datasheet
MBA
Category Information

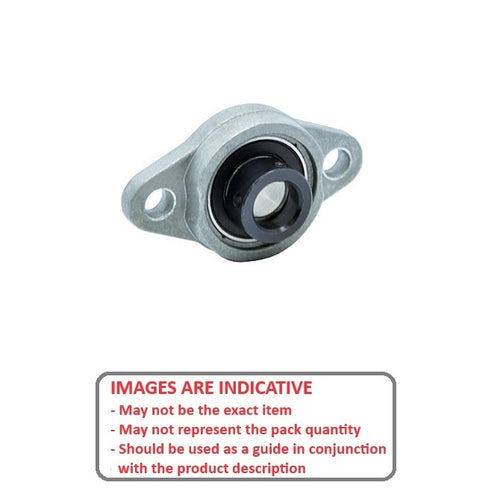

Housing Assembly - Flanged 2 Bolt - Non Aligning - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
- An expanded range may be available on special order. Please enquire.
Product Data

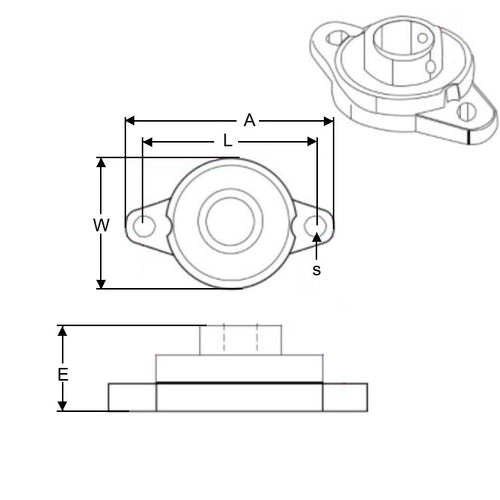

- Nominal Shaft Size
:
8.0
mm
(Equiv. 0.315 in.) - Width (W)
27.0
mm
+/- 1.0
(Equiv. 1.063 in.) - Overall Length (A)
48.0
mm
(Equiv. 1.89 in.) - Overall Height (E) 16.3 mm
- Bolt Hole Size (s) 4.8 mm
- Bolt Hole Centres (L) 37.0 mm +/- 0.5
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Generic KFL08
