DB49RS - Datasheet
MBA
Category Information

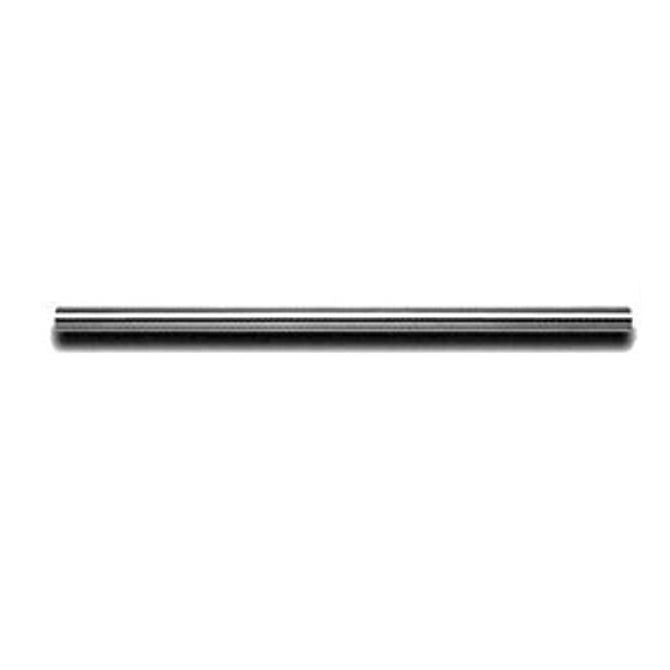

Rod - Drill BlanksDrill Blanks Rod. Made of hardened high speed steel.
- Useful for turning and boring tools, constructing pins, hinge pins, arbors, pin gauges, dowels, preforating punchs.
- Can also be ground to make special cutting tools such as mills, spotfaces, angle or radii cutters, etc.
Product Data
- Nominal Diameter
:
8.433
mm
+ 0.000 / - 0.013
(Equiv. 0.332 in.) - Length
120.65
mm
(Equiv. 4.75 in.) - Letter / Number Q
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 3009A199
- DB49
- DB-49
