Miniature Bearings Australia
GO-080-048-110-R16 - Datasheet
MBA
Category Information

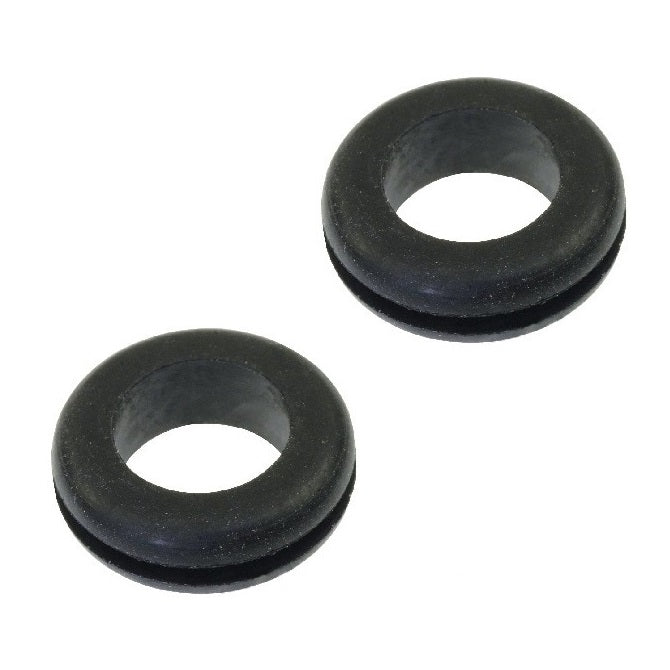

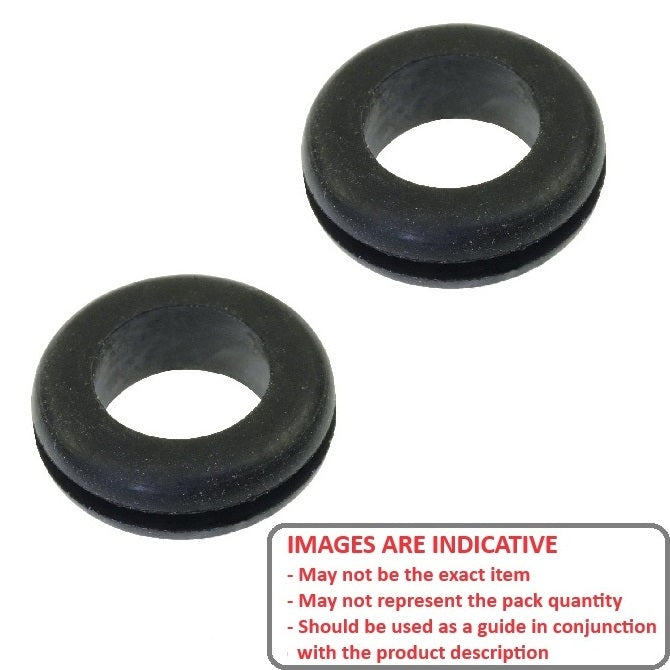

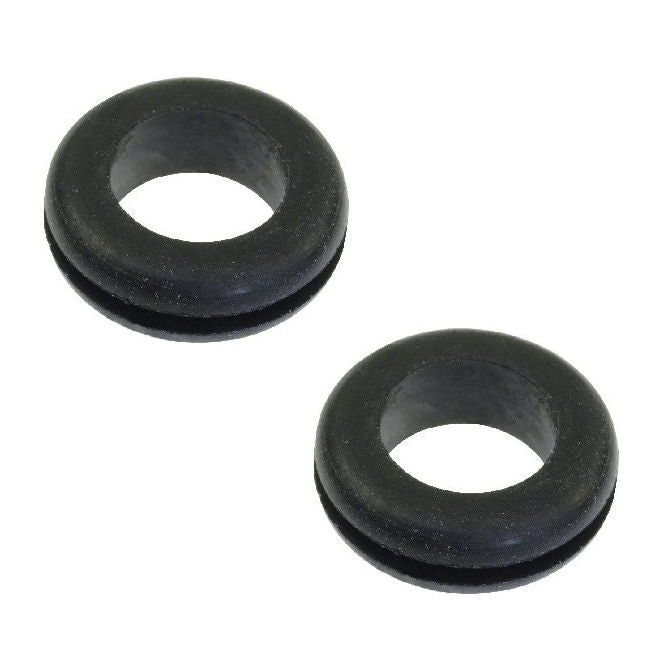

Grommets - Natural Rubber - OpenOpen Natural Rubber Grommets. Natural Rubber Grommets
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- 50 +/-5 Durometer
- Easy to Install
- Good Vibration and Shock Control
- Protects Wire, Cable and Hoses
- Also see snap bushings for a hard plastic product serving a similar purpose
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

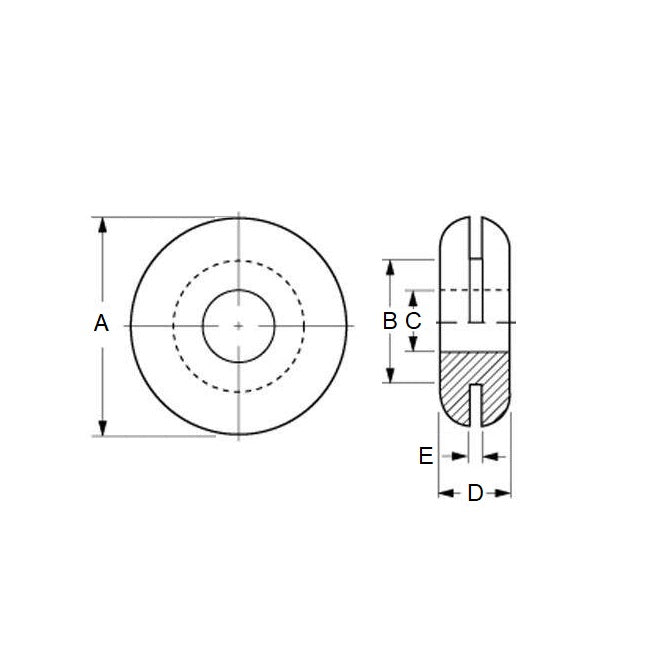

- Plate Hole Diameter (B)
:
8.00
mm
(Equiv. 0.315 in.) - Inside Diameter (C)
4.80
mm
(Equiv. 0.189 in.) - Outside Diameter (A)
11.00
mm
(Equiv. 0.433 in.) - Thickness (D) 4.80 mm
- Plate Thickness (E) 1.60 mm
- Edge Radius (R) 1.25 mm
- Net Weight 0.4 grams
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- V12R30M11004816
