IN-TP-042C-08-P-S3 - Datasheet
MBA
Category Information

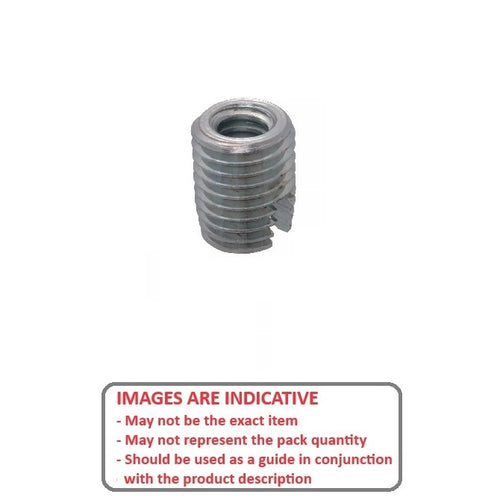

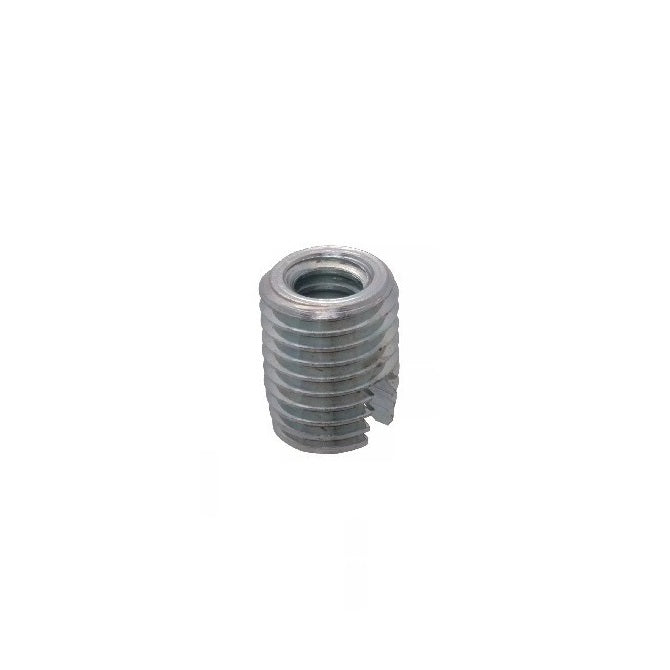

Inserts - Self Tapping - For Plastics - Stainless SteelStainless Steel For Plastics Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread. Use of installation tool recommended.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Use with plastics, light metal alloys or hard wood. Standard made from 303 stainless steel. Quantity orders can also be supplied in Brass or 316 Stainless
Product Data

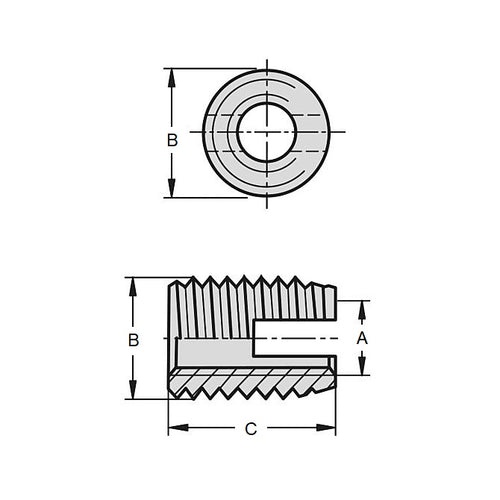

- Internal Thread : 8-32 UNC (4.17mm)
- Rec. Hole Diameter
5.79
mm
(Equiv. 0.228 in.) - Length (L)
8.0
mm
(Equiv. 0.315 in.) - Outside Diameter (B) 6.50 mm
- Required Hole Depth 10.00 mm
- Soft Metals Hole Size 5.99
- Material to be used in Plastic, Light Metal Alloys and Hardwood
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- STI115
- STI-115
- INTP042C08PS3
