KF042C-025-CB - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

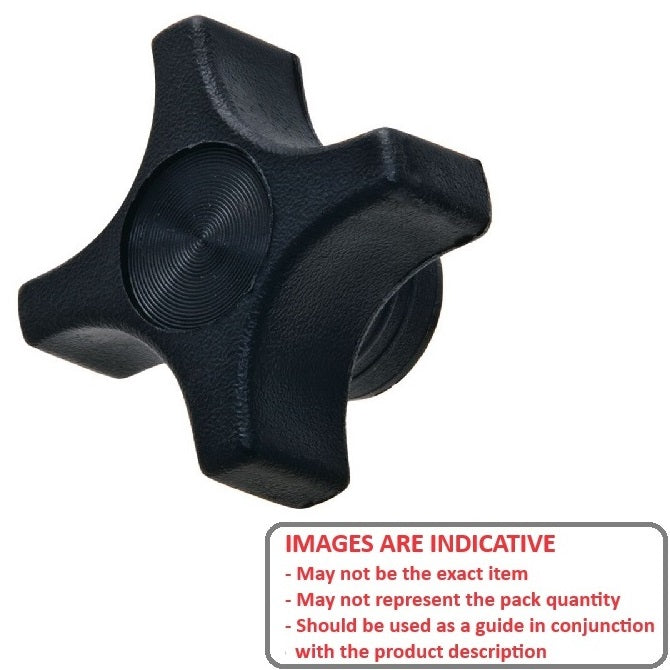

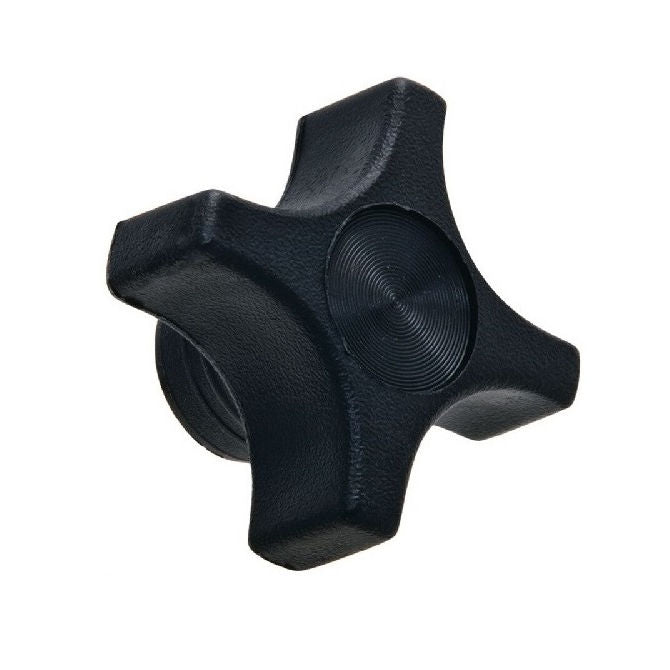

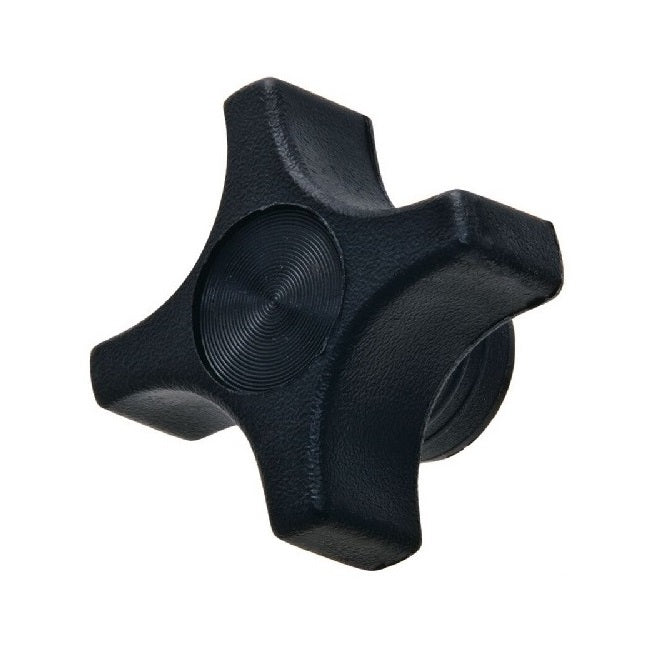

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

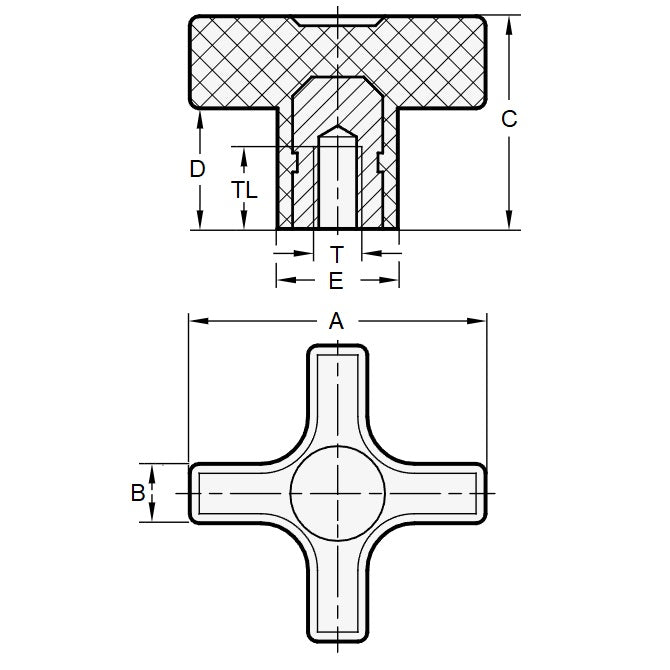

  • Thread Size : 8-32 UNC (4.17mm)
  • Head Diameter (A) 25.40 mm
    (Equiv. 1 in.)
  • Thread Length 9.5 mm
    (Equiv. 0.374 in.)
  • Colour Black
  • Hub Diameter (E) 11.11 mm
  • Hub Length (D) 11.11 mm
  • Knob Height (C) 19.05
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 5993K11
  • DK141
  • DK-141
View full details
KF042C-025-CBDiagramKF042C-025-CBImage
