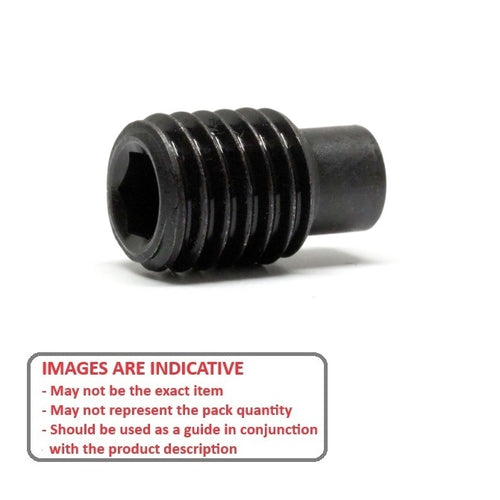

SS042C-0079-AS-DP - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size : 8-32 UNC (4.17mm)
• Thread Length (L) 6.9 mm
  (Equiv. 0.272 in.)
• Type Dog Point
• Overall Length (L + L1) 7.9 mm
• Tip Diameter (d) 2.6 - 2.8 mm
• Tip Length (L1) 1.0 mm
• Hex Key Size 1.98
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Carbon Steel
