SS042C-0064-AS-OT - Datasheet
MBA
Category Information

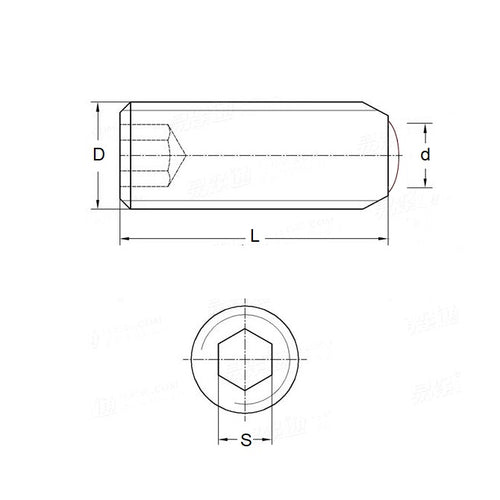

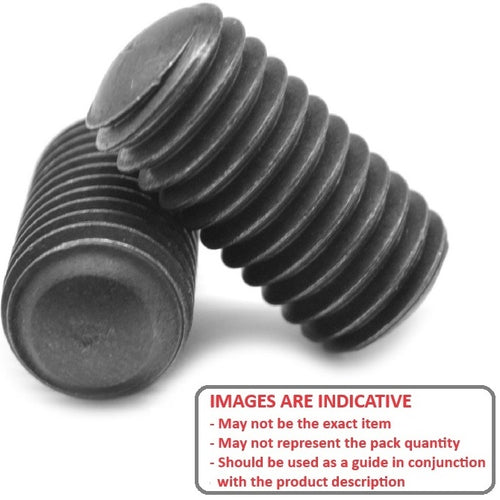

Socket Set Screws - Oval TipOval Tip Socket Set Screws. This is the main category in this series
- Socket driven grub screws with an oval shaped head.
Product Data
- Thread Size : 8-32 UNC (4.17mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Oval Tipped
- Hex Key Size 1.98 (5/64) mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92765A152
- BRB-131031P
- BRB131031P
