Miniature Bearings Australia
SC042C-045-B-SK-C - Datasheet
Brighton Best
Category Information

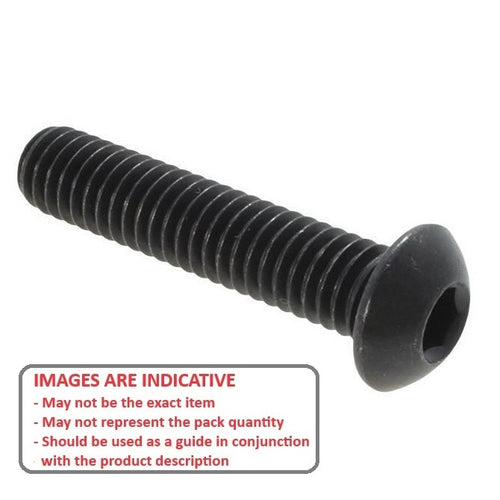

Screws - Button - Socket - Alloy SteelAlloy Steel Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : 8-32 UNC (4.17mm)
- Thread Length (L)
44.5
mm
(Equiv. 1.752 in.) - Material Alloy Steel
- Max Head Diameter 7.9 mm
- Max Head Height 2.2 mm
- Hex Key (D) 2.38 (3/32) mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 701310
- 91225A169
