SCC042C-030-038-TH-S3 - Datasheet

MBA

Product Data

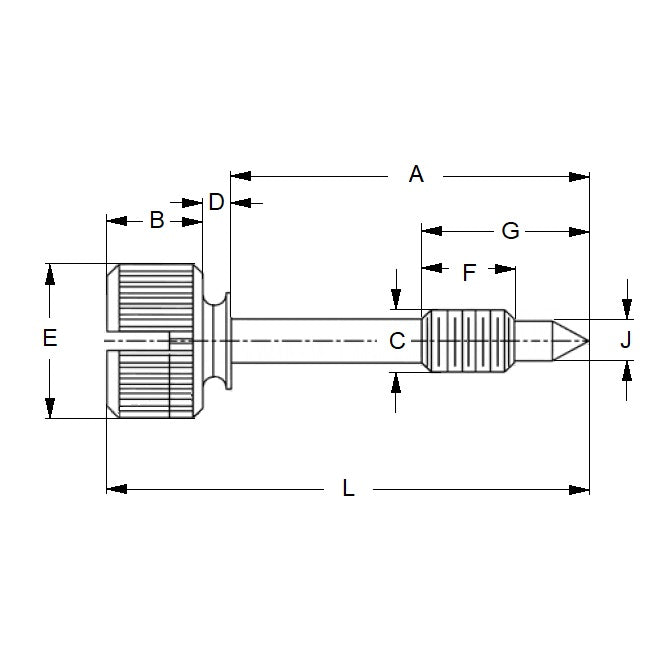

• Thread Size (C) : 8-32 UNC (4.17mm)
• Overall Length (L) 38.10 mm
  (Equiv. 1.5 in.)
• Thread Length (F) 5.56 mm
  (Equiv. 0.219 in.)
• Shank Length (A) 30.16 mm
• Top of Thread to End (G) 7.94 mm
• Plain Shaft Dia (J) 3.05 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
