SCC042C-025-033-TH-S3 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

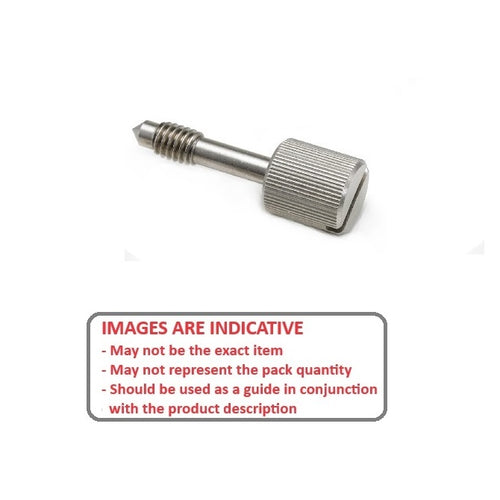

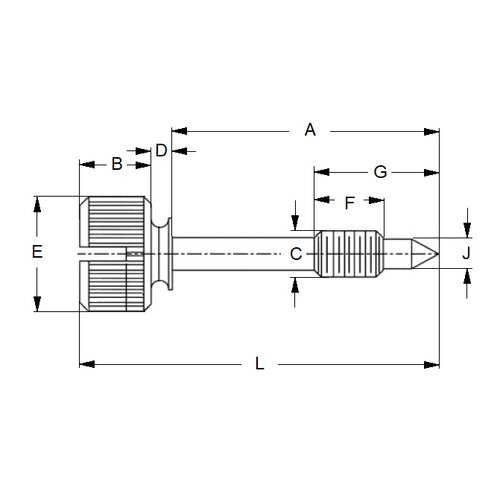

• Thread Size (C) : 8-32 UNC (4.17mm)
• Overall Length (L) 33.34 mm
  (Equiv. 1.313 in.)
• Thread Length (F) 5.56 mm
  (Equiv. 0.219 in.)
• Shank Length (A) 25.40 mm
• Top of Thread to End (G) 7.94 mm
• Plain Shaft Dia (J) 3.05 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
