SC042C-032-H-SL-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

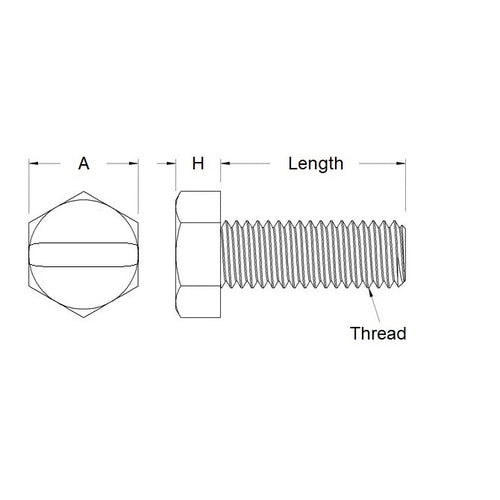

• Thread Size (C) : 8-32 UNC (4.17mm)
• Thread Length (L) 31.8 mm
  (Equiv. 1.252 in.)
• Material Nylon (Zytel 101)
• Max Head Diameter 6.35 mm
• Max Head Height 2.79 mm
• Head Type Hex Head / Slotted
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Nylon (Zytel 101)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• A 9M50-H083220
• A9M50H083220
• A9M50-H083220
