THS042C-019-F-CZ-NT - Datasheet
MBA
Category Information

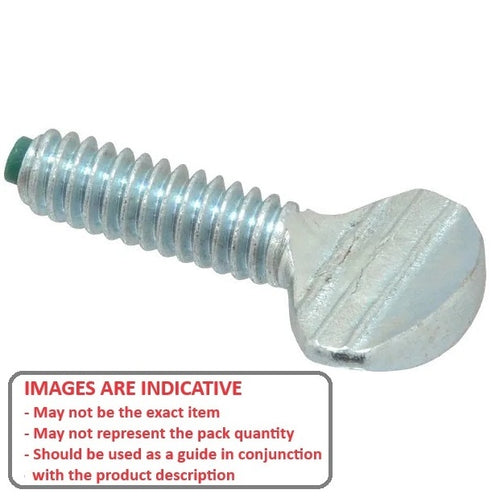

Screws - Thumb - Nylon TipNylon Tip Thumb Screws. Soft nylon tip to help prevent damage to parts being locked.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

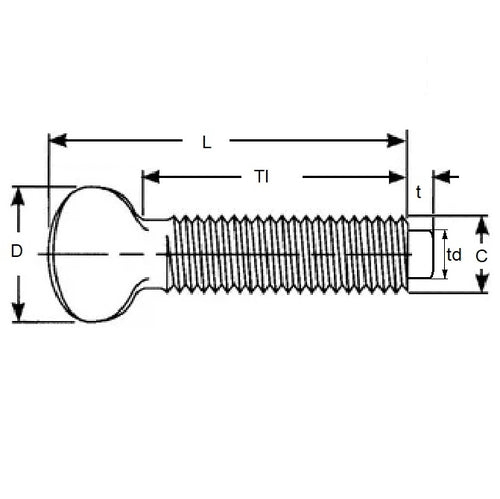

- Thread Size : 8-32 UNC (4.17mm)
- Thread Length (L) 19.05 mm
- Finish Zinc Plated
- Tip Diameter 2.38 mm
- Tip Length 1.19 mm
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Reid Tool® TNT-20
- TNT20
