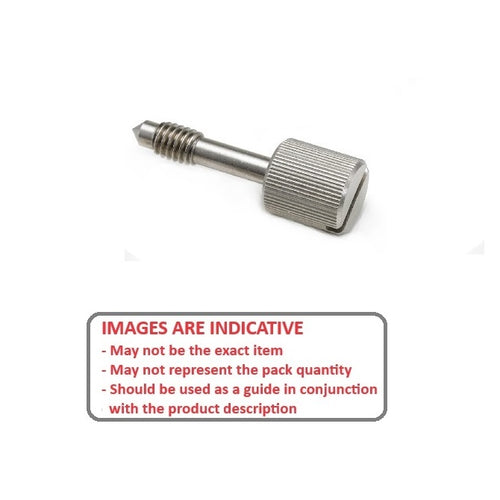

SCC042C-011-019-TH-S3 - Datasheet

MBA

Product Data

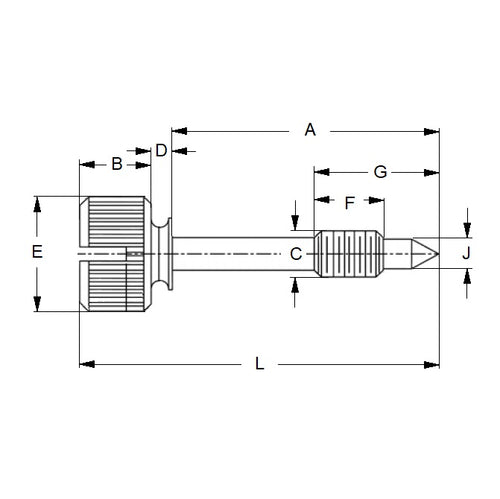

• Thread Size (C) : 8-32 UNC (4.17mm)
• Overall Length (L) 19.05 mm
  (Equiv. 0.75 in.)
• Thread Length (F) 5.56 mm
  (Equiv. 0.219 in.)
• Shank Length (A) 11.11 mm
• Top of Thread to End (G) 7.94 mm
• Plain Shaft Dia (J) 3.05 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
