THS042C-016-K-AL-WF - Datasheet
MBA
Category Information

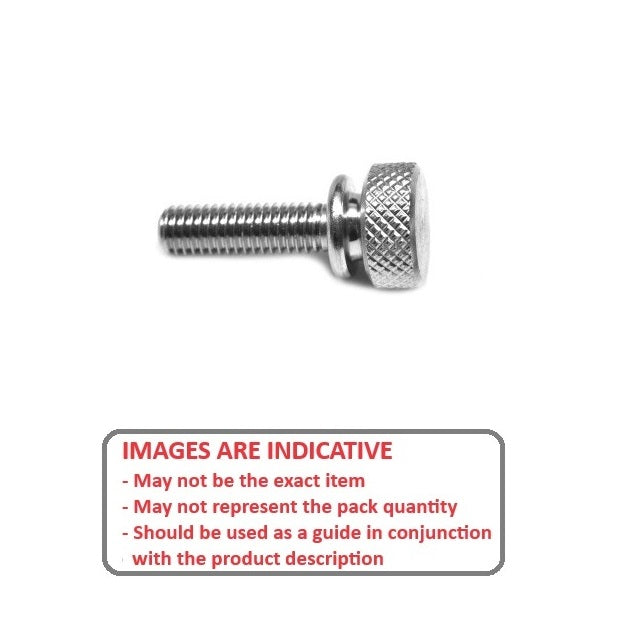

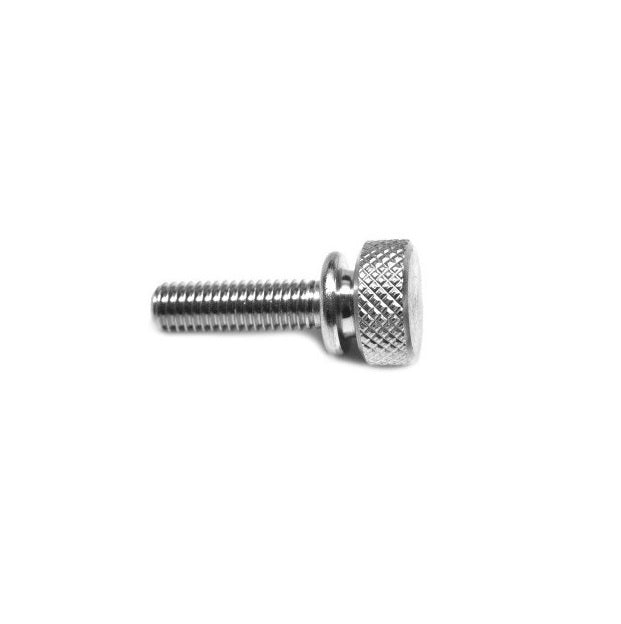

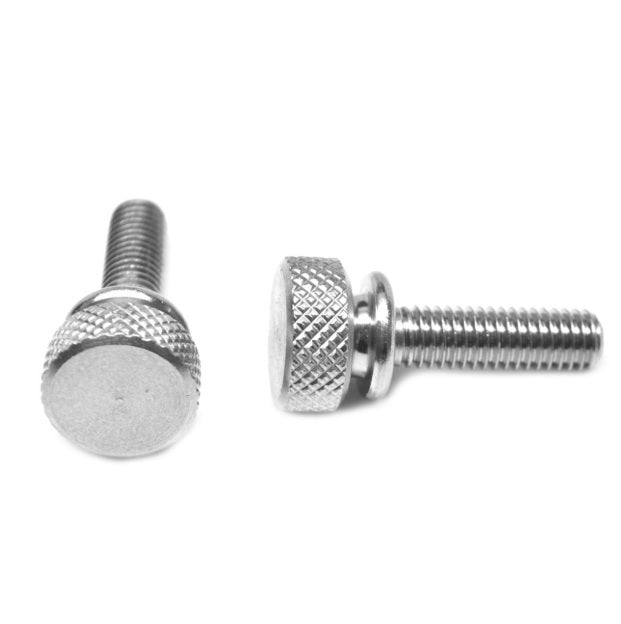

Screws - Thumb - Knurled - Washer Face - AluminiumAluminium Washer Face Knurled Thumb Screws. Knurled head aluminum thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 8-32 UNC (4.17mm)
- Thread Length (D)
15.88
mm
(Equiv. 0.625 in.) - Overall Length (C)
23.81
mm
(Equiv. 0.937 in.) - Head Diameter (A) 11.11 mm
- Head Height (B) 4.76 mm
- Finish Plain
- Washer Diameter (E) 9.53 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94567A360
- AJ-887
- AJ887
