THS042C-013-K-BN-WF - Datasheet
MBA
Category Information

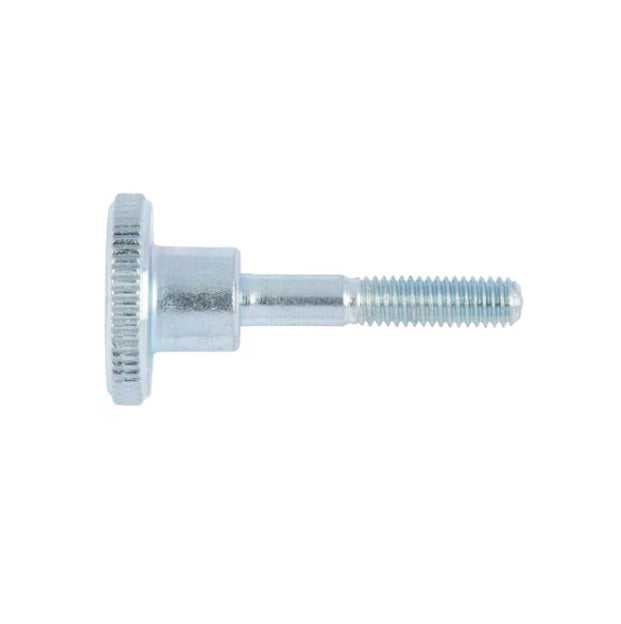

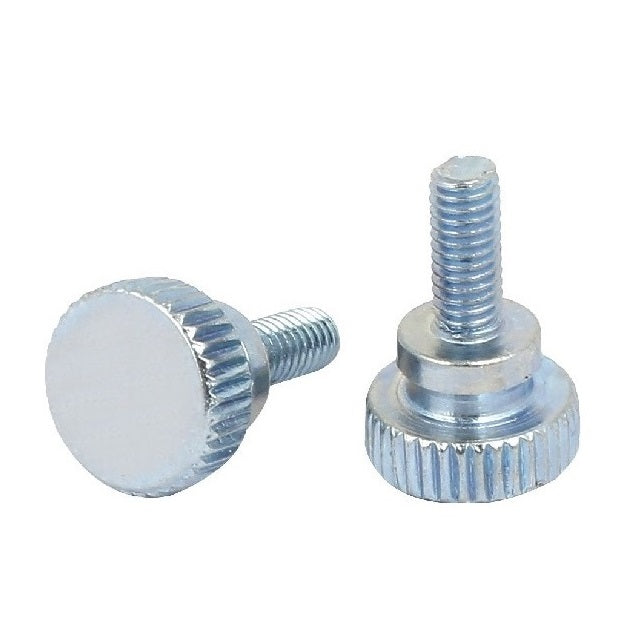

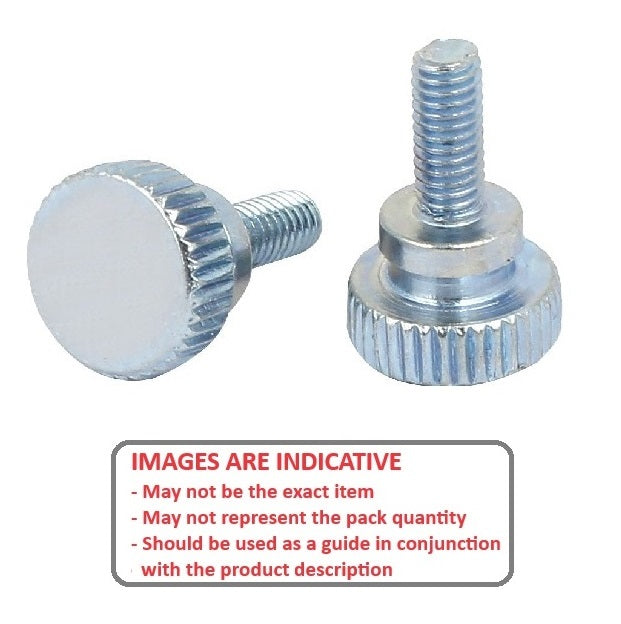

Screws - Thumb - Knurled - Washer Face - BrassBrass Washer Face Knurled Thumb Screws. Knurled head brass thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 8-32 UNC (4.17mm)
- Thread Length (D)
12.70
mm
(Equiv. 0.5 in.) - Overall Length (C)
20.64
mm
(Equiv. 0.813 in.) - Head Diameter (A) 9.53 mm
- Head Height (B) 4.76 mm
- Finish Nickel Plated
- Washer Diameter (E) 7.94 mm
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92421A194
- A9B41A0832E
- A9B41-A0832E
