SPANC-042C-022 - Datasheet

MBA

Category Information

Spring Anchors - Steel

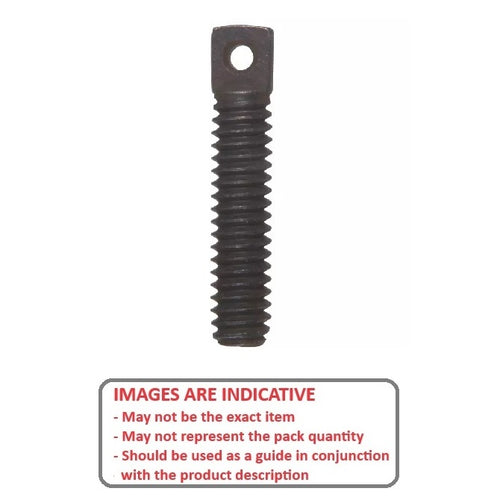

Steel Spring Anchors. An economical way to secure the ends of extension springs, and provide easy adjustment.

  • C-12114 Steel with Black Oxide Finsh

Product Data

  • Thread : 8-32 UNC (4.17mm)

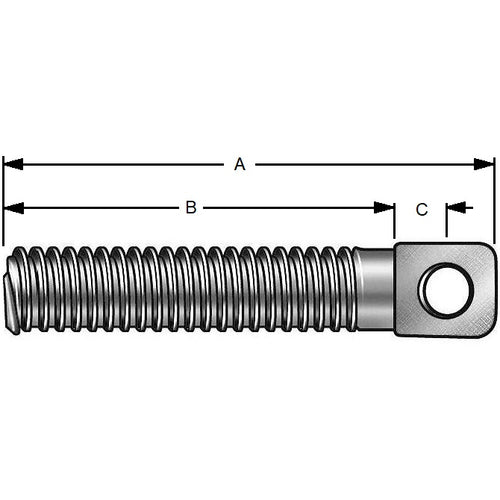

  • Overall Length (A) 22.225 mm
    (Equiv. 0.875 in.)
  • Thread Length (B) 15.875 mm
    (Equiv. 0.625 in.)
  • Thread to Centre Eye (C) 2.159 mm
  • Hole Size 1.778 mm
  • Load 77 Kg
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9634K22
  • CSA60RS
