SSA-60RS - Datasheet

MBA

Category Information

Spring Anchors - Stainless Steel

Stainless Steel Spring Anchors. An economical way to secure the ends of extension springs, and provide easy adjustment.

  • 300 Grade Stainless Steel

Product Data

  • Thread : 8-32 UNC (4.17mm)
  • Overall Length (A) 22.225 mm
    (Equiv. 0.875 in.)
  • Thread Length (B) 15.875 mm
    (Equiv. 0.625 in.)
  • Thread to Centre Eye (C) 2.159 mm
  • Hole Size 1.778 mm
  • Load 77 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95907A460
View full details

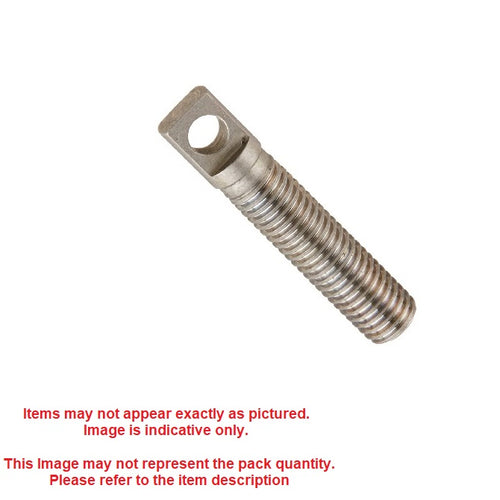

SSA-60RSDiagramSSA-60RSImage
