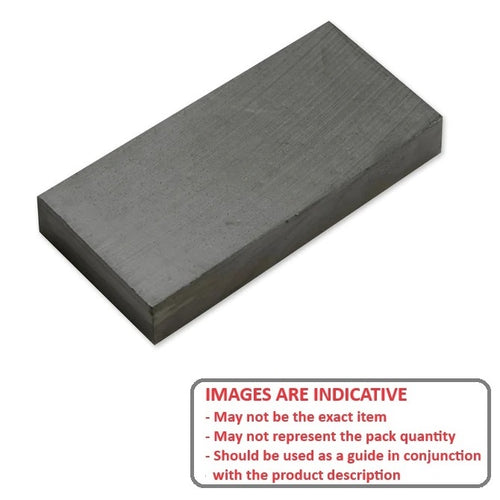

MAG-BK-08-19-102-C - Datasheet
MBA
Category Information
Magnets - Blocks CeramicBlocks Ceramic Magnets. Low cost, light weight, high energy material
- Non conductive hard brittle material
- Performs best at temperatures below 249 oC
- Can be cut with a diamond wheel
- Difficult to grind and can't be machined or drilled by normal methods
- Tolerance 0.13mm on all dimensions
Product Data
- Pull : 8.26 kg
- Thickness
19.05
mm
(Equiv. 0.75 in.) - Width
101.6
mm
(Equiv. 4 in.) - Length 152.4 mm
- Weight 1.34 kg
Product Compliance and Data
Additional Resources
Cross References
- IM478
- IM-478
