CS-0800-0250-09-S4-G - Datasheet
MBA
Category Information

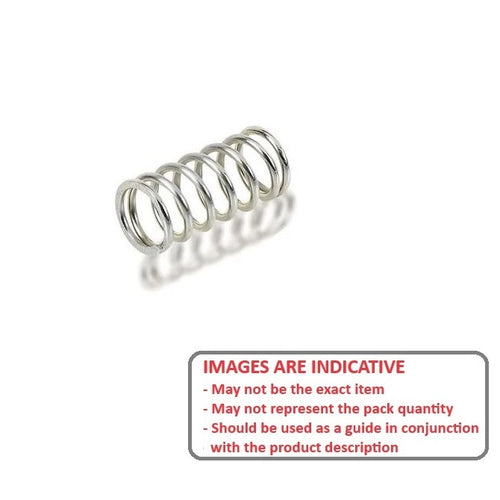

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
8.00
mm
(Equiv. 0.315 in.) - Free Length (L0)
25.0
mm
(Equiv. 0.984 in.) - Wire Diameter (d)
0.90
mm
(Equiv. 0.035 in.) - Loaded Height (L1) 15.00 mm
- Load at L1 19.60 N
- Rate (P/f) 2.0 N/mm
- Solid Height (Sh) 10.40 mm
- Approx. ID 6.2 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 6.20 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-UM8-25
- Misumi C-UTT8-25
- CUM825
- CUTT825
