FL-08-W300 - Datasheet
MBA
Category Information

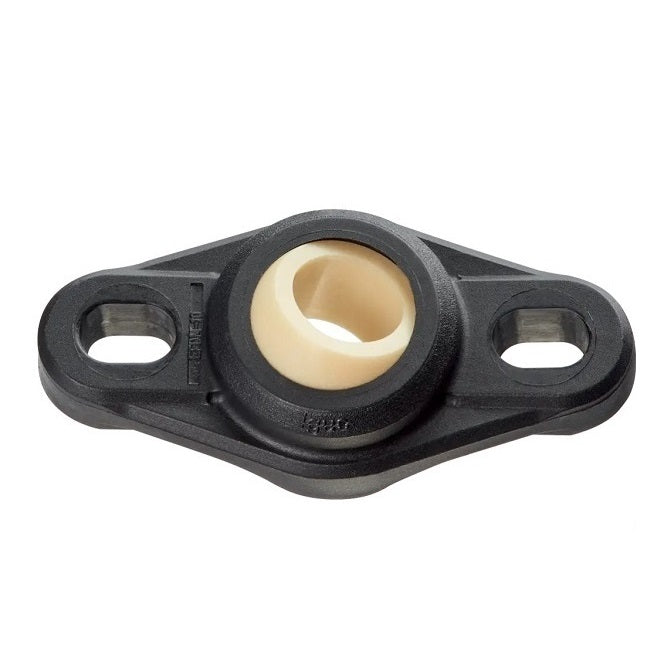

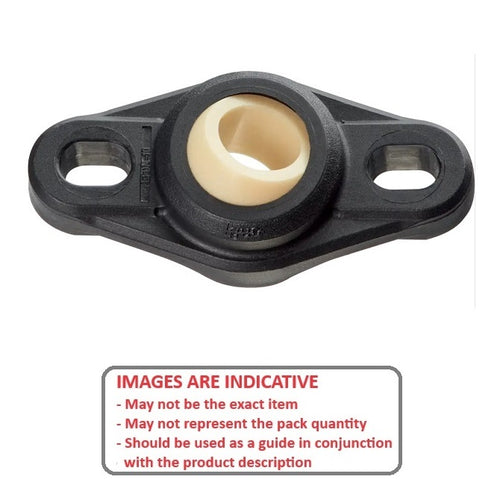

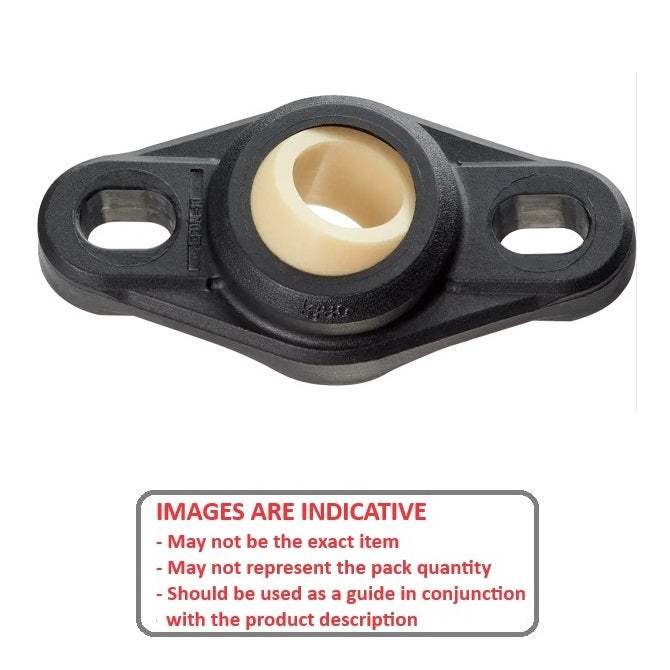

Housing Assembly - Flanged 2 Bolt - Self Aligning - W300W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.
Product Data
- Nominal Shaft Size
:
8.00
mm

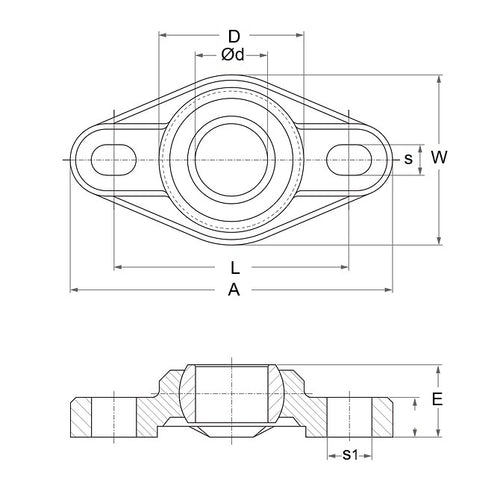

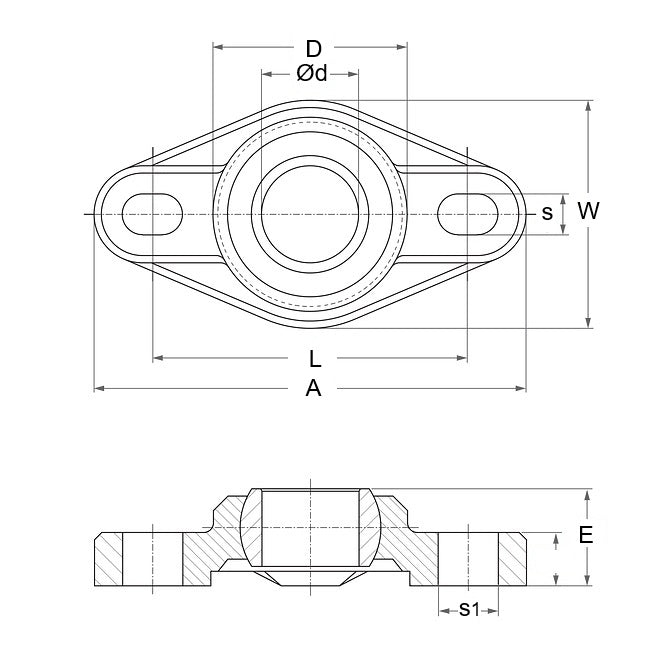

(Equiv. 0.315 in.) - Overall Length (A)
31.000
mm
(Equiv. 1.22 in.) - Overall Height (E) 10.500 mm
- Min to Max Shaft Dia. 24 mm
- Base Height (D) 5.500 mm
- Bolt Hole Size (s) 4.3 x 6.5 mm
- Bolt Hole Centres (L) 22.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFOM-08
- EFOM08
- I703
- I-703
