H100-08000480PFL-303 - Datasheet
MBA
Category Information

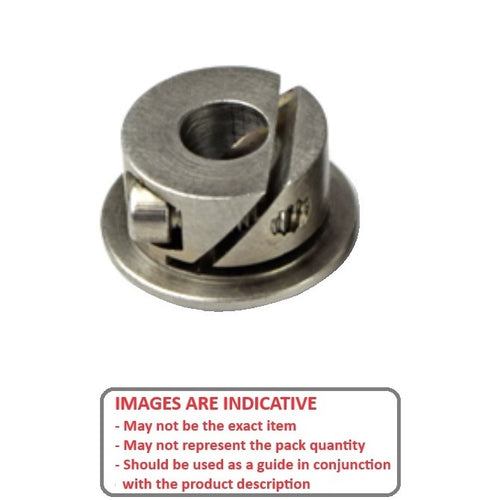

Hubs - Gear and Dial SingleGear and Dial Single Hubs. Fairloctm Hubs require controlled shaft tolerances between 0.0025 and 0.0203 mm Clearance.
- This category will be discontinued when this item is sold.
- The items is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

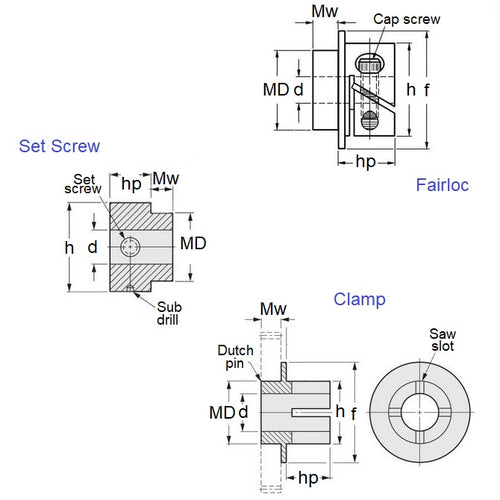

- Inside Diameter (d)
:
8.000
mm
(Equiv. 0.315 in.) - Mounting Diameter (MD)
10.000
mm
(Equiv. 0.394 in.) - Mounting Width (Mw)
4.800
mm
(Equiv. 0.189 in.) - Hub Diameter (h) 17.000 mm
- Hub Projection (hp) 14.000 mm
- Quality Precision
- Type Fairloc
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S2F0MYM048080
