ACE1030M1RS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 8.1 mm
      (Equiv. 0.319 in.)
    • Thread (T) M8x1.0
    • Length (A/F) 54.00 / 34.30 mm
      (Equiv. 2.126 in.)
    • Shaft Diameter (D) 2.50 mm
    • Effective Weight 0.45 - 1.95 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE1030M1
      • ACE-1030M1
      View full details

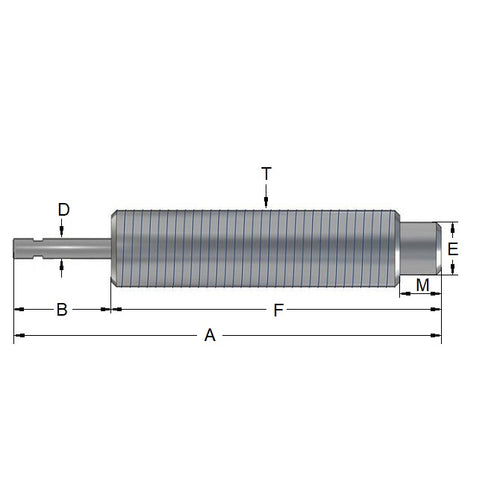

      ACE1030M1RSDiagramACE1030M1RSImage
