ACE1030M2RS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 8.1 mm
    • Thread (T) M8x1.0
    • Length (A/F) 54.00 / 34.30 mm
    • Shaft Diameter (D) 2.50 mm
    • Effective Weight 1.80 - 5.40 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-1030M2
      • ACE1030M2
      View full details

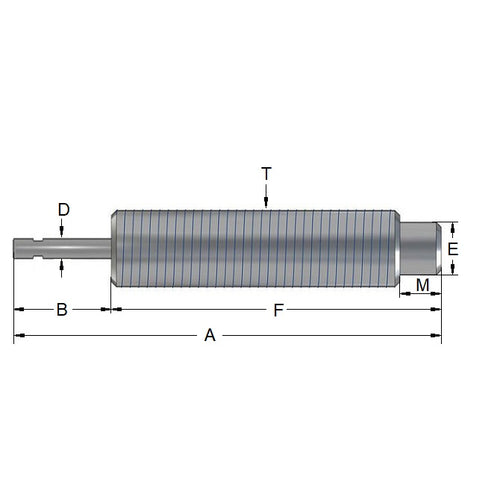

      ACE1030M2RSDiagramACE1030M2RSImage
