REM-080-R-PP - Datasheet
MBA
Category Information

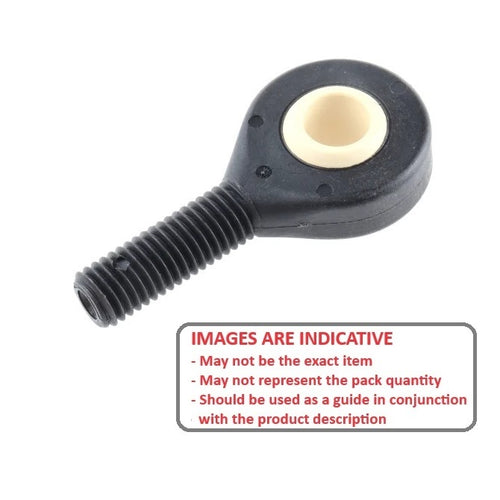

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
8.000
mm
(Equiv. 0.315 in.) - Overall Length (L)
55.00
mm
(Equiv. 2.165 in.) - Thread Size M8x1.25 Right
- Min. Thread Length (l2) 25.00 mm
- Head Width (W) 9.00 mm
- Eye Width (W1) 12.00 mm
- Head Diameter (D) 24.00 mm
- Centre Height (l1) 42.00 mm
- Grease Nipple No
- Max Angle of Pivot 25 °
- Max Torque Strength 12.10 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- KARM08
- KARM-08
- I-552
- I552
- S62GMRM0812R
