REM-080-L-CB-N - Datasheet
MBA
Category Information

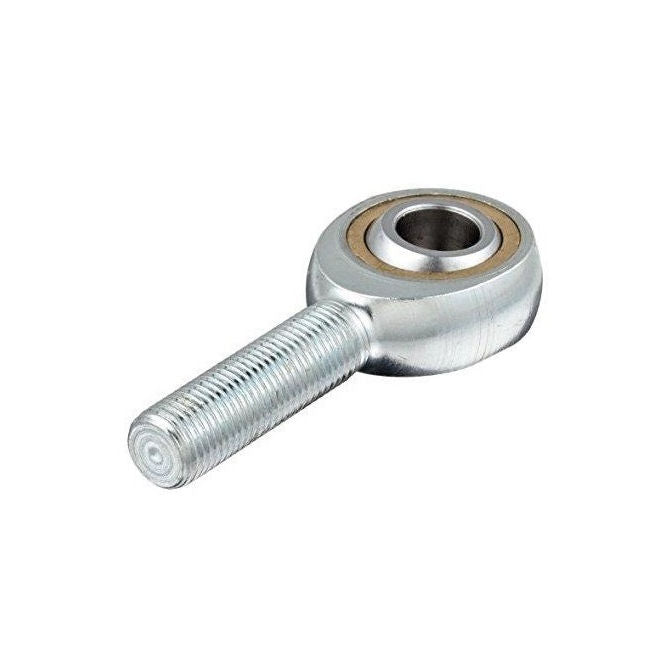

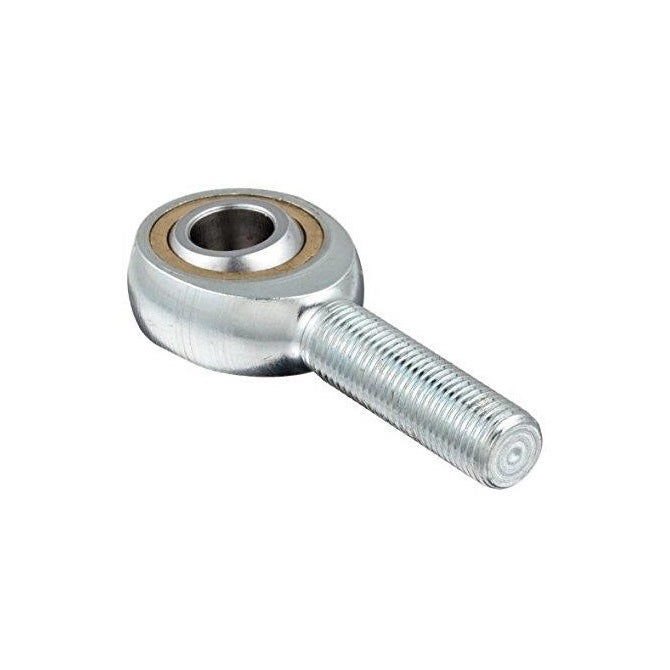

Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow HeaFerrobal Narrow Hea Bronze Lined Steel Male Rod Ends. Bearing Steel, hardened, ground and chromium plated Inner ring, Heavy duty bronze with embedded bronze - PTFE fabric Outter ring. Steel/Bronze - PTFE fabric Sliding Combination.
- An expanded range may be available on special order. Please enquire.
- Maintenance free and no lubrication necessary.
- Also known as Heim Joints
Product Data

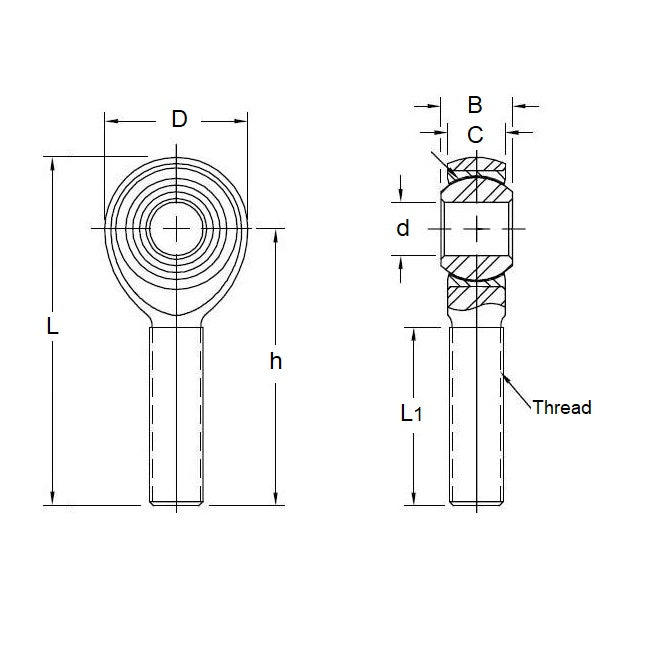

- Eye Size (d1)
:
8
mm
(Equiv. 0.315 in.) - Overall Length (L)
54.00
mm
(Equiv. 2.126 in.) - Thread Size M8x1.25 Left
- Min. Thread Length (l2) 42.00 mm
- Head Width (W) 6.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter 22.00 mm
- Centre Height 13.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K42-LEFT
- 6072K42LEFT
