Miniature Bearings Australia
BFM-8M-NN - Datasheet
MBA
Category Information

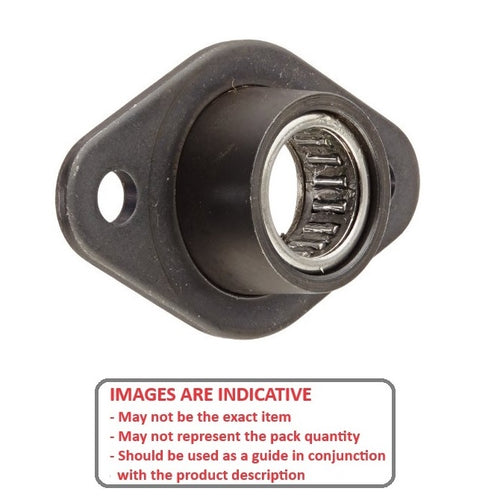

Housing Assembly - Flanged 2 Bolt - Non Aligning - Needle RollerNeedle Roller Non Aligning Flanged 2 Bolt Housing Assembly. Low profile flange mounted needle roller bearings
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

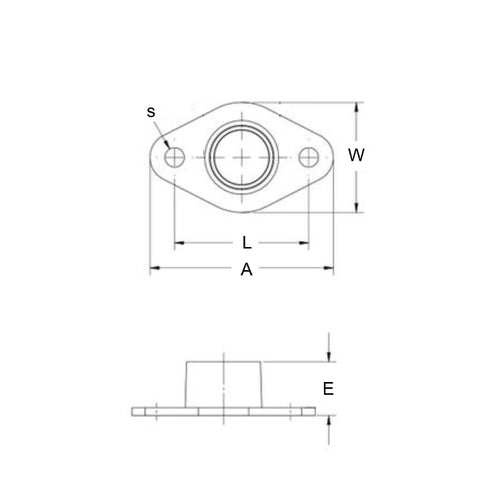

- Nominal Shaft Size
:
8.000
mm
(Equiv. 0.315 in.) - Width (W)
53.00
mm
(Equiv. 2.087 in.) - Overall Length (A)
16.70
mm
(Equiv. 0.657 in.) - Overall Height (E) 30.30 mm
- Min to Max Shaft Dia. 7.991 to 8.000 mm
- Max. Radial Dynamic Load 2750 N
- Bolt Hole Centres (L) 38.9 mm
- Max Speed 28000
- Material Steel
