COL-00800-025-10-1C-AL - Datasheet

MBA

Product Data

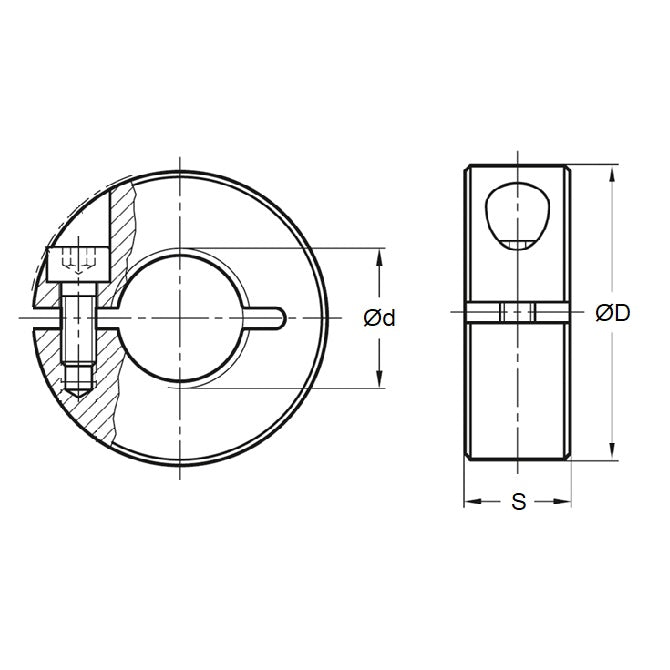

• Suitable Shaft Size (d) : 8.000 mm _{+ 0.01 / + 0.05}
  (Equiv. 0.315 in.)
• Outside Diameter (D) 25.00 mm
  (Equiv. 0.984 in.)
• Overall Width (S) 10.0 mm
  (Equiv. 0.394 in.)
• Material Aluminium

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Shaft Collars PDF Catalogue


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-SCSAW8-10
• CSCSAW810
