SHLD080-012-SKT-S3 - Datasheet
MBA
Category Information

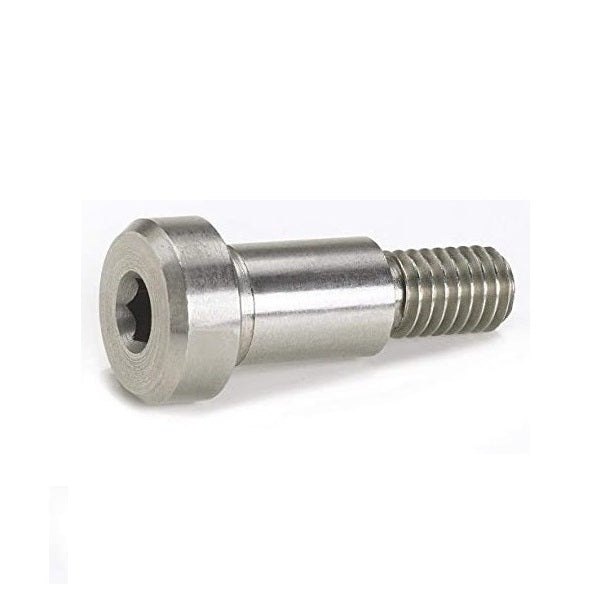

Screws - Shoulder - Socket Head - 303 Stainless303 Stainless Socket Head Shoulder Screws. 303 Stainless Steel
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data

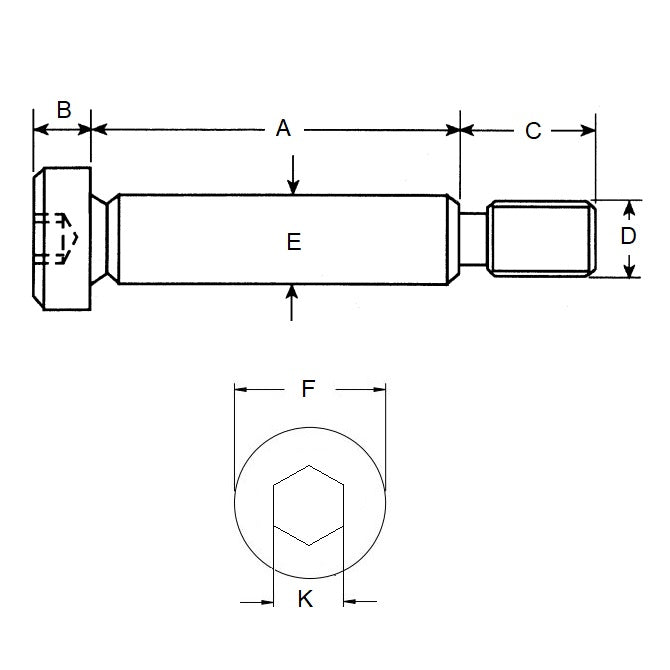

- Shoulder Diameter (E)
:
8.000
mm
+ 0.000 / - 0.076
(Equiv. 0.315 in.) - Shoulder Length (A)
12.000
mm
+ 0.05 / + 0.2
(Equiv. 0.472 in.) - Thread (D) M6x1.0
- Max. Thread Length (C) 11.00 mm
- Head Height (B) 6.00 mm
- Head Diameter (F) 12.00 mm
- Allen Key Size 4.00 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90265A151
- SHS812
- SHS8-12
- A9X25M0612
