BFM-8M-B - Datasheet
MBA
Category Information

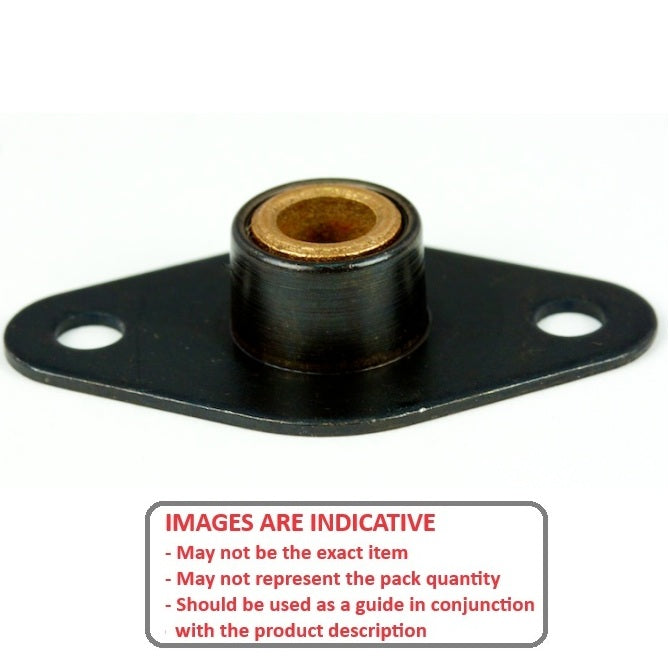

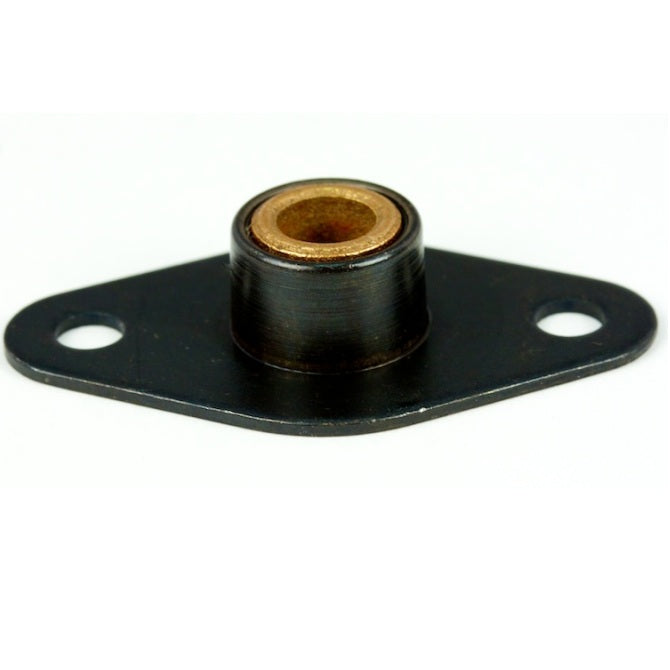

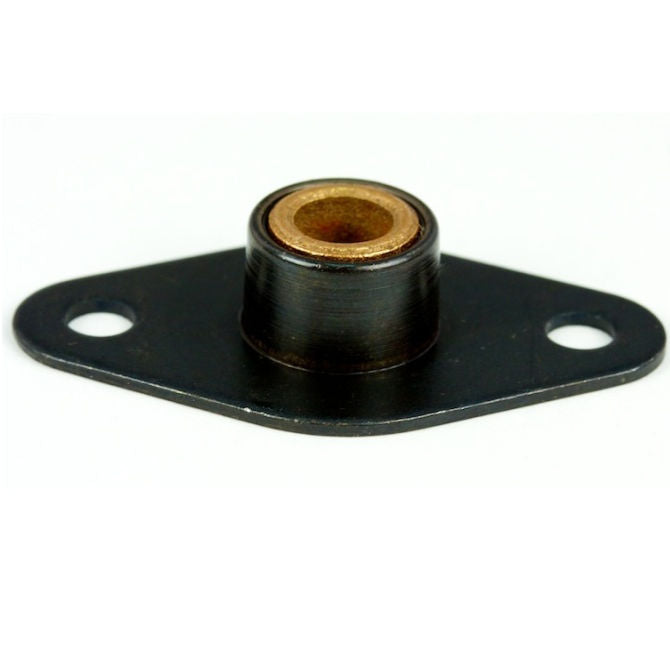

Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered BronzeSintered Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted sintered bronze bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
8.000
mm
(Equiv. 0.315 in.) - Width (W)
53.00
mm
(Equiv. 2.087 in.) - Overall Length (A)
17.00
mm
(Equiv. 0.669 in.) - Overall Height (E) 30.20 mm
- Min to Max Shaft Dia. 8.020 to 8.040 mm
- Max. Radial Dynamic Load 1190 N
- Bolt Hole Centres (L) 39.00 mm
- Max Speed 12120
- Material Sintered Bronze SAE 840
Product Compliance and Data
Additional Resources
Cross References
- 5912K78
