SHLD080-010-SL-S3 - Datasheet
MBA
Category Information

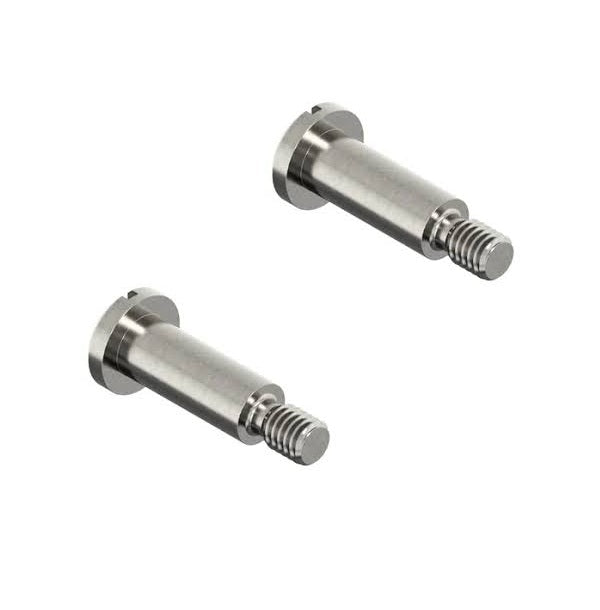

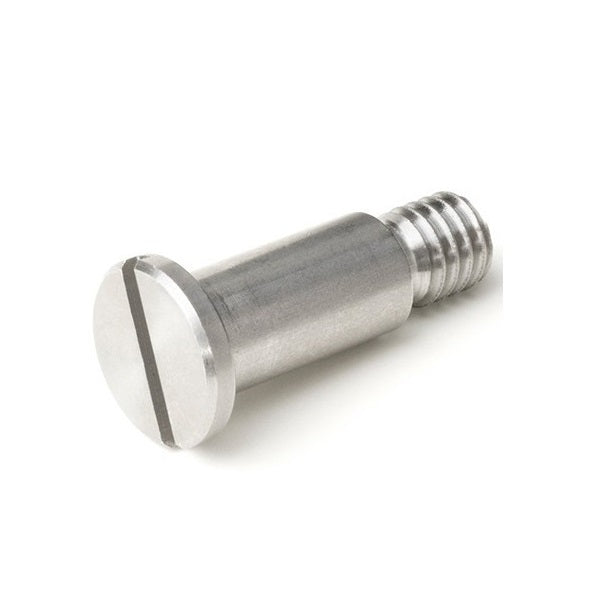

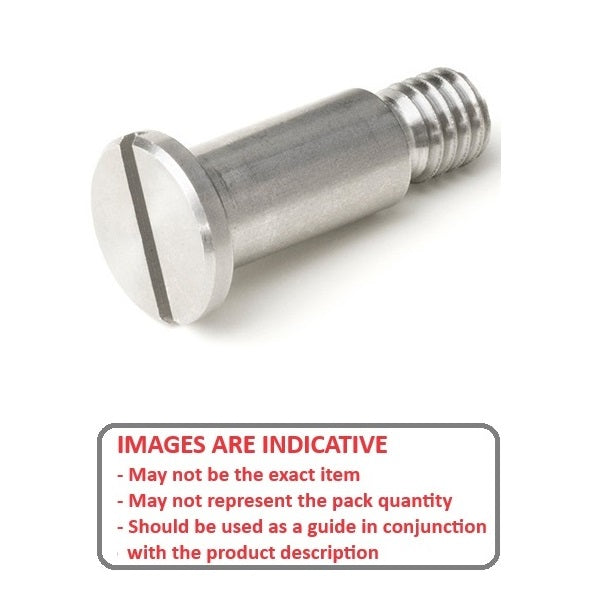

Screws - Shoulder - Slotted - StainlessStainless Slotted Shoulder Screws. 303 Stainless Steel
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data
- Shoulder Diameter (E)
:
8.000
mm
- 0.013 / - 0.049
(Equiv. 0.315 in.) - Shoulder Length (A)
10.000
mm
(Equiv. 0.394 in.) - Thread (D) M6x1.0
- Max. Thread Length (S) 11.00 mm
- Head Height (H) 6.00 mm
- Head Diameter (D) 12.00 mm
- Drive Type Slotted Drive
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- A9X15M0610
