PSP-080-022H-C - Datasheet
MBA
Category Information

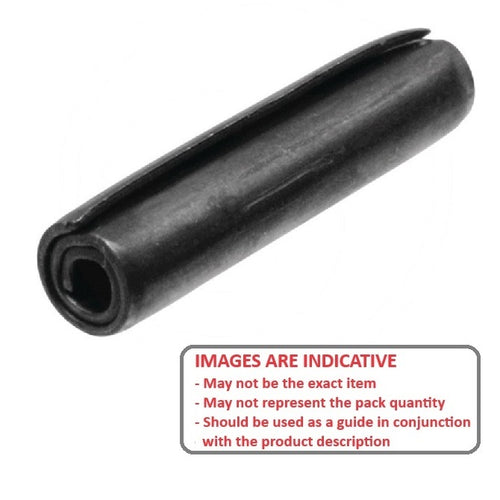

Pins - Coiled - Steel - Heavy DutyHeavy Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8748 Heavy Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
8.00
mm
(Equiv. 0.315 in.) - Length
22.00
mm
+/- 0.50
(Equiv. 0.866 in.) - Drill Size
8.00 - 8.15
mm
(Equiv. 0.315 in.) - Loose Diameter 8.25 - 8.55 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCM-080-022H
- SPCM080022H
