Miniature Bearings Australia
0R-0080-1000-SIL - Datasheet
MBA
Category Information
Rod - Drill - W-1 Water Hardening SilversteelW-1 Water Hardening Silversteel Drill Rod. For punches dies and high strength machine parts. Unhardened - requires heat treatment.
- An expanded range may be available on special order. Please enquire.
- High abrasion resistance and high toughness when hardened. 100 percent machinability.
- Requires heat treating to harden.
- Small diameters may not be perfectly straight.
- Refer engineering guides online for W-1 hardening requirements.
Product Data

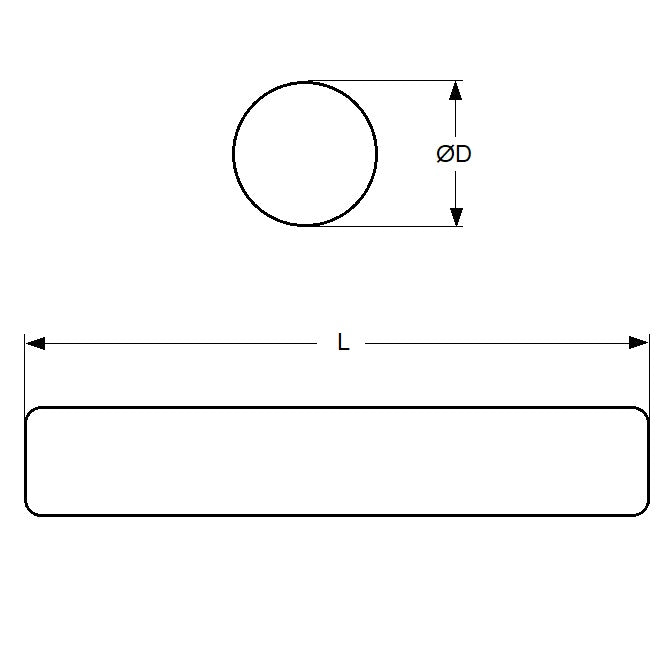

- Diameter (d)
:
8.00
mm
+ 0.000 / - 0.015
(Equiv. 0.315 in.) - Length (L)
1000
mm
(Equiv. 39.37 in.) - Material BS1407
- Centreless Ground 0.6 um
- HRC15
- Chamfered
- Material BS1407 SilverSteel - W-1 Water Hardening
Product Compliance and Data
Additional Resources
Cross References
- RSH080B
