W0080-LK-017-022-LR-S6 - Datasheet
MBA
Category Information

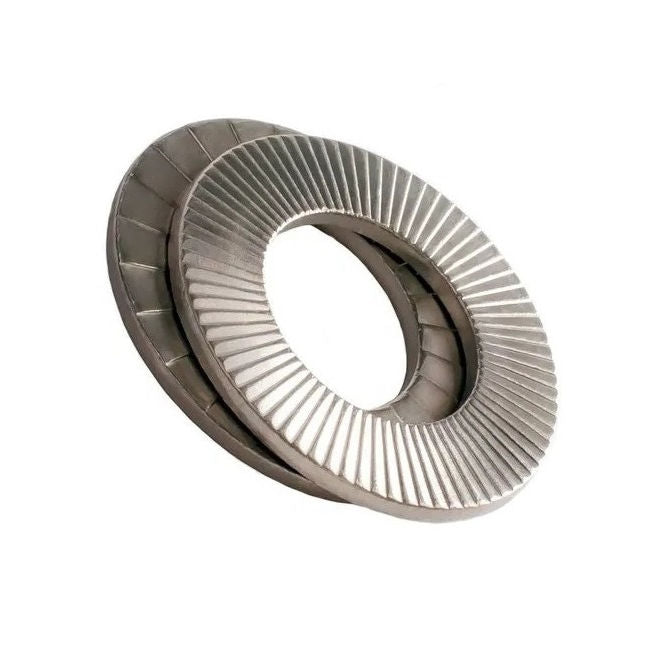

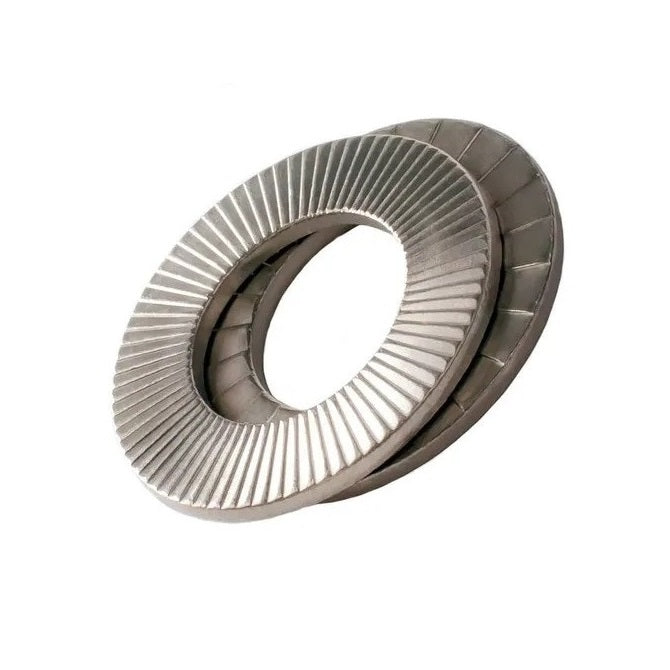

Washers - LockRite - 316 Stainless Steel316 Stainless Steel LockRite Washers. 316 stainless steel selection.
- LockRite© washers offer resistance to self loosening during vibration & fluctuating loads. An expanded range may be available on special order. Please enquire.
- They wedge each other and lock themselves, utilizing tension leading to a secure bolted joint.
- Supplied in pairs. Assembled in pairs, cam face to cam face.
- Locking function not affected by lubrication. Eliminates the need for adhesives. Reusable.
- Can be used with fasteners up to grade 12.9.
Product Data

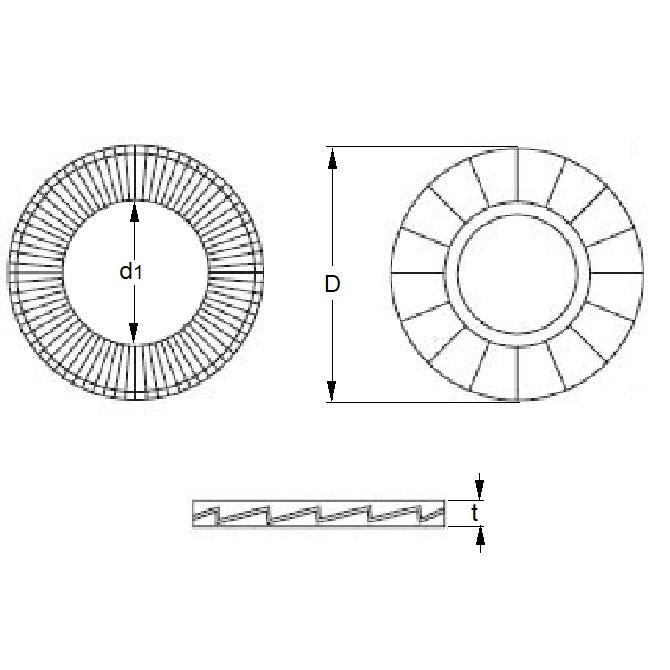

- Nominal Inside Diameter (d1)
:
8.0
mm
(Equiv. 0.315 in.) - Nominal Outside Diameter (D)
16.6
mm
(Equiv. 0.654 in.) - Thickness (t) Per Pair - 2.2 mm
- 32.00
- Sold per pair mm
- 8.2
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 91812A430
- LockRite LR160820S
- WASCA LR160820S
- Nordlock NL8SSSP
