607-Z-MC45-T9H-AF12-J - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Bearings in this group have various types of high speed cages.
Speed ratings range from 20 percent to 80 percent increase on standard cage types.
See individual datasheets, available on request.
Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

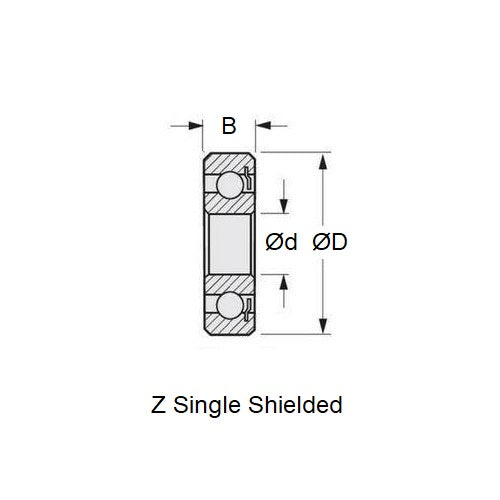

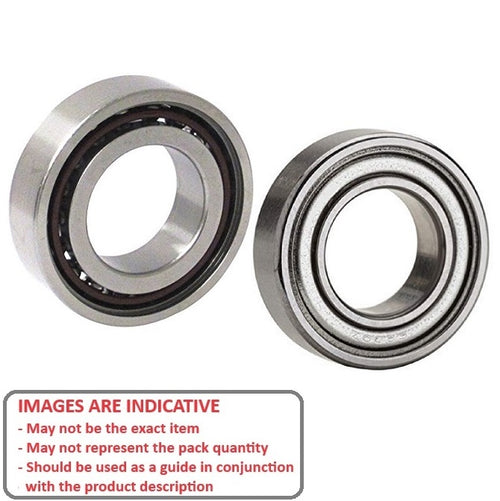

Single shielded high clearance bearing with a high speed polyamide retainer and light oil lubricant

ID (d) : 7.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.276 in.)
O.D. (D) 19.000 mm _{+ 0.000 / - 0.010}
(Equiv. 0.748 in.)
Width (B) 6.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.236 in.)
Precision Grade Abec 1
Closure Type Z
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage

Lubrication Type Oil
Lubrication Name AF12 Aeroshell Fluid 12
Basic Part 607
Limiting Speed 68800
Cage Type Polyamide
Static Load Rating KGf 91
Dynamic Load Rating KGf 238
Radii 0.30 mm
Inner Shoulder (UI) 9.00mm
Outer Shoulder (UO) 16.50 mm
Number of Balls 6
Clearance C823 (8 to 23)
Precision Grade Abec 1
Closure Type Z
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Nitro Engine Parts
Nova Rossi® - Plus 21-5 - Replacement Front Bearing
Nova Rossi® - Plus 21-5T - Replacement Front Bearing
ASP® - 40 - Replacement Front Bearing
ASP® - 40 All Models - Bearing
ASP® - 40 All Models - Replacement Front Bearing
ASP® - 46 - Replacement Front Bearing
ASP® - 46 All Models - Bearing
ASP® - 46 All Models - Replacement Front Bearing
ASP® - 52 Old - Replacement Front Bearing
Axe Rossi® - LSK - 21 - Bearing
Axe Rossi® - LSK - 21 - Replacement Front Bearing
Axe Rossi® - R21 - 21 - Bearing
Axe Rossi® - R21 - 21 - Replacement Front Bearing
Axe Rossi® - ROSSI - 21 - Bearing
Axe Rossi® - ROSSI - 21 - Replacement Front Bearing
Axial® - Spec 1S Size 28 - Replacement Front Bearing
Axial® - Spec 1S Size 32 - Replacement Front Bearing
Bergonzoni® - XR21 - 28 RR Engine - Replacement Front Bearing
Bluebird® - 21 - Replacement Front Bearing
Bluebird® - 28 All Models - Replacement Front Bearing
CEN - Matrix Ringer TR.28 - 25 - Bearing
CEN - Matrix Ringer TR.28 - 25 - Replacement Front Bearing
CMB - 15 - Bearing
CMB - 15 - Replacement Front Bearing
CMB - 21 - Replacement Front Bearing
CMB - 21 Evo Redhead 14mm Crank - Replacement Front Bearing
CMB - 21 LS Green Head - Replacement Front Bearing
CMB - 67 All Models - Replacement Front Bearing
CMB - EV02 - 67 - Bearing
CMB - EV02 - 67 - Replacement Front Bearing
CMB - EVO2 - 45 - Bearing
CMB - EVO2 - 45 - Replacement Front Bearing
CMB - Lower Unit - 67 - Bearing
CMB - Lower Unit - 67 - Replacement Front Bearing
CMB - LS Green Head Marine - 45 - Replacement Front Bearing
CMB - Old - 21 - Replacement Front Bearing
CMB - Red Head Marine - 21 - Bearing
CMB - Red Head Marine - 21 - Replacement Front Bearing
CMB - RS - 35 - Replacement Front Bearing
CMB - TT Marine - 21 - Replacement Front Bearing
CMB - Valvola 3.5CC - 35 - Bearing
CMB - Valvola 3.5CC - 35 - Replacement Front Bearing
Collari® - LC21B3 - 21 - Replacement Front Bearing
Collari® - WRXLC21B7 - 21 - Replacement Front Bearing
Como® - 21 All Models - Bearing
Como® - 21 All Models - Replacement Front Bearing
Como® - 40 -51 - Replacement Front Bearing
Como® - 40 All Models - Bearing
Como® - 40 All Models - Replacement Front Bearing
Como® - All Models - Replacement Front Bearing
Duratrax® - Torque 21 - 40 - Replacement Front Bearing
Dynamite® - Mach 26 - 21 - Replacement Front Bearing
Dynamite® - Mach 427 - 26 - Replacement Front Bearing
Dynamite® - Platinum SG Off Road - 26 - Bearing
Dynamite® - Platinum SG Off Road - 26 - Replacement Front Bearing
Dynamite® - Platinum SG Off Road - 427 - Bearing
Dynamite® - Platinum SG Off Road - 427 - Replacement Front Bearing
Dynamite® - Platinum SG With PS Off Road - 0.21 - Bearing
Dynamite® - Platinum SG With PS Off Road - 0.21 - Replacement Front Bearing
Enya® - 40 - Replacement Front Bearing
Enya® - 4C - Old - 90 - Bearing
Enya® - 4C - Old - 90 - Replacement Front Bearing
Enya® - X - 45 - Replacement Front Bearing
Fantom® - FR27 - 46 - Replacement Front Bearing
Force® - 21 - Replacement Front Bearing
Force® - 61 All Models - Replacement Front Bearing
Force® - All Other Rear Exhaust - 21 - Replacement Front Bearing
Force® - E- 1501 Rear Exhaust EFRA - 0.21 - Replacement Front Bearing
Force® - E-1503 Rear Exhaust Not EFRA - 0.15 - Replacement Front Bearing
Force® - E-2101 Rear Exhaust - 0.15 - Replacement Front Bearing
Force® - E-2106 Rear Exhaust - 0.21 - Replacement Front Bearing
GS General Silicone - 15R - 61 - Replacement Front Bearing
GS General Silicone - R21B01P - 0.15 - Replacement Front Bearing
GS General Silicone - R25MT - 21 - Replacement Front Bearing
HP - 21 - Replacement Front Bearing
HP - 46 All Models - Replacement Front Bearing
HP - 61 Old 1975 - Replacement Front Bearing
HP - Old/1975 - 40 - Bearing
HP - Old/1975 - 40 - Replacement Front Bearing
HP - VT 4C - 49 - Replacement Front Bearing
HP - VT 4C - 61 - Bearing
HPI - 21 - Replacement Front Bearing
HPI - Nitro Star K4.6 - 12 - Bearing
HPI - Nitro Star K4.6 - 12 - Replacement Front Bearing
HPI - Pro RSC - 15 - Bearing
HPI - Pro RSC - 15 - Replacement Front Bearing
HPI - RSC Pro - 4.6 CC - Replacement Front Bearing
Irvine® - 15 New Turbo - 2 Stroke - Replacement Front Bearing
Irvine® - New Turbo - 40 - Replacement Front Bearing
JP Racing - B8 - 90 - Bearing
JP Racing - B8 - 90 - Replacement Front Bearing
JP Racing - PR.21 P5 Off Road - 95 - Replacement Front Bearing
JP Racing - PR.21 Race World - 95 - Replacement Front Bearing
K.B - SS Outboard Marine Engine - 0.15 - Replacement Front Bearing
LRP Nitro - Z.12R Team Spec 2 - 12 - Replacement Front Bearing
LRP Nitro - Z.21R - 12 - Bearing
LRP Nitro - Z.21R - 12 - Replacement Front Bearing
LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Replacement Front Bearing
Mac® - 28 - Bearing
Mac® - 28 - Replacement Front Bearing
Mac® - Inboard - 67 - Bearing
Mac® - Inboard - 67 - Replacement Front Bearing
Mac® - OB PTO - 84 - Bearing
Mac® - OB PTO - 84 - Replacement Front Bearing
Mac® - Outboard - 21 - Replacement Front Bearing
Magnum Power® - XL - 32 - Replacement Front Bearing
Magnum Power® - XL - 36 - Bearing
Magnum Power® - XL - 36 - Replacement Front Bearing
Magnum Power® - XL - 40 - Bearing
Magnum Power® - XL - 40 - Replacement Front Bearing
Magnum Power® - XL - 52 - Bearing
Magnum Power® - XL - 52 - Replacement Front Bearing
Magnum® - 40XL - 2 Stroke - Replacement Front Bearing
Magnum® - 46 - 2 Stroke - Replacement Front Bearing
Magnum® - 53 - 2 Stroke - Replacement Front Bearing
MAZ® - 52 All Models - Bearing
MAZ® - 52 All Models - Replacement Front Bearing
MDS - 40 All Models - Bearing
MDS - 40 All Models - Replacement Front Bearing
MDS - 58 All Models - Replacement Front Bearing
Moki® - All - 50 - Replacement Front Bearing
Moki® - All - 61 - Bearing
Moki® - All - 61 - Replacement Front Bearing
Moki® - Marine - 2.1 - Replacement Front Bearing
Mugen® - MR21 BO1 - 90 - Replacement Front Bearing
Mugen® - MR21 R01 - 15 - Replacement Front Bearing
Mugen® - MT - 3.6 - Replacement Front Bearing
MVVS - 1.6 All Models - Replacement Front Bearing
MVVS - 21 - Replacement Front Bearing
MVVS - 40 GRRT - GFA - GFR - Replacement Front Bearing
MVVS - GFR - 15 - Replacement Front Bearing
MVVS - GFR - 77 - Bearing
MVVS - GFR - 77 - Replacement Front Bearing
MVVS - GFS - 40 - Bearing
MVVS - GFS - 40 - Replacement Front Bearing
MVVS - Glow Engine - 1.5 - Bearing
MVVS - Glow Engine - 1.5 - Replacement Front Bearing
MVVS - Glow Engine - 61 - Replacement Front Bearing
MVVS - GRRT - 40 - Bearing
MVVS - GRRT - 40 - Replacement Front Bearing
Nosram® - RS 21 Evo - 25 - Bearing
Nosram® - RS 21 Evo - 25 - Replacement Front Bearing
Nova Rossi® - 09.20-C - 25 - Replacement Front Bearing
Nova Rossi® - 2.0 CC Speed - Replacement Front Bearing
Nova Rossi® - 2000 10 Port - 15 - Replacement Front Bearing
Nova Rossi® - 7 SB - 3.5 Rex - Replacement Front Bearing
Nova Rossi® - BR21SB01 Rex - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - BS21SB - 2000 - Replacement Front Bearing
Nova Rossi® - BT21SB01 Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - CR12PR2/N Rex - 60 10CCSL - Replacement Front Bearing
Nova Rossi® - CR12PS1/N Rex - 60 10CCSL - Replacement Front Bearing
Nova Rossi® - CR12PS2/N Rex - 60 10CCSL - Replacement Front Bearing
Nova Rossi® - CR12R1/N Rex - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CR12R2/N Rex - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CR12S1/N Rex - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12PR1/N Rex - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12PR1/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12PR2/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12PS1/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12PS2/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12R2/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12RS1/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12S1/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CT12S2/N Top - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12 - Replacement Front Bearing
Nova Rossi® - CX12PR1/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12PR2/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12PS1/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12PS2/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12R1/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12R2/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12S1/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX12S2/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - CX15R/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - ER15R Rex - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - ET Top - 15 2.5CC - Replacement Front Bearing
Nova Rossi® - ET15R Top - 15 2.5CC - Replacement Front Bearing
Nova Rossi® - JP Pro - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - MX12PR - 12 - Replacement Front Bearing
Nova Rossi® - N528XR - 12 2.1CC - Bearing
Nova Rossi® - N528XR - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - N528XRP - 15 2.5CC - Bearing
Nova Rossi® - N528XRP - 15 2.5CC - Replacement Front Bearing
Nova Rossi® - N528XSP - 12 - Bearing
Nova Rossi® - N528XSP - 12 - Replacement Front Bearing
Nova Rossi® - Nova - 28 4.66CC - Replacement Front Bearing
Nova Rossi® - P5X - 15 2.5CC - Bearing
Nova Rossi® - P5X - 15 2.5CC - Replacement Front Bearing
Nova Rossi® - Plus 21 SK - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - Plus 21-3 - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - Plus 5 - 21 - Replacement Front Bearing
Nova Rossi® - Plus 5T - 21 - Replacement Front Bearing
Nova Rossi® - PR21 P5T/N Rex - Replacement Front Bearing
Nova Rossi® - PR21P5/N Rex - 21 - Replacement Front Bearing
Nova Rossi® - PR21P5T/N Rex - 21 - Replacement Front Bearing
Nova Rossi® - PR21R1WC Rex - 12 - Replacement Front Bearing
Nova Rossi® - PR321P Rex - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PR421B Rex - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PR421P Rex - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PT21P5 Top - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PT21P5N - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PT21P5T Top - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PT21R1WC Top - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PT21RR1/N Top - 21 2.5CC - Replacement Front Bearing
Nova Rossi® - PT321P Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - PT421P Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - R528XR Rex - 21 3.5CC - Bearing
Nova Rossi® - R528XR Rex - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - R528XRP Rex - 21 3.5CC - Bearing
Nova Rossi® - R528XRP Rex - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - R528XSP Rex - 21 3.5CC - Bearing
Nova Rossi® - R528XSP Rex - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - RBC5BB - 28 4.6CC - Replacement Front Bearing
Nova Rossi® - Rex 350 Short Stroke - Replacement Front Bearing
Nova Rossi® - RS12 - Front Bearing 7-19mm
Nova Rossi® - RS12 - Replacement Front Bearing
Nova Rossi® - RS12TS1 - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - RX21-FR/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - RX21MR2/N - 12 2.1CC - Replacement Front Bearing
Nova Rossi® - RX21P5 - 12 - Replacement Front Bearing
Nova Rossi® - RX21P5T - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - RX21P5X New - 21 3.5CC - Bearing
Nova Rossi® - RX21P5X New - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - RX21R1WC - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - RX21RR1/N - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - RX321P - 21 - Replacement Front Bearing
Nova Rossi® - RX421P - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - S421B - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - S421B/N - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - S421R - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - SX - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - T421B Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - T421R Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - T528XR Top - 12 21CC - Bearing
Nova Rossi® - T528XR Top - 12 21CC - Replacement Front Bearing
Nova Rossi® - T528XRP Top - 21 3.5CC - Bearing
Nova Rossi® - T528XRP Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - T528XSP Top - 21 3.5CC - Bearing
Nova Rossi® - T528XSP Top - 21 3.5CC - Replacement Front Bearing
Nova Rossi® - TR15R Rex - 28 4.66CC - Replacement Front Bearing
Nova Rossi® - TT15R Top - 12 21.CC - Replacement Front Bearing
Nova Rossi® - TX15R/N - 12 21.CC - Replacement Front Bearing
Ofna® - 21 - 15 2.5CC - Replacement Front Bearing
Ofna® - Force 12 Red Head - 21 - Replacement Front Bearing
Ofna® - Hyper.12 - 15 - Replacement Front Bearing
Ofna® - Hyper.12 - 21 - Replacement Front Bearing
OPS - 12 - Replacement Front Bearing
OPS - 21 -40 -45 - Replacement Front Bearing
OPS - 3.5 -21 Pro - Replacement Front Bearing
OPS - 35 All Models - Replacement Front Bearing
OPS - 40 All Models - Replacement Front Bearing
OPS - 45 - Replacement Front Bearing
OPS - 90 All Models - Replacement Front Bearing
OPS - Old - 80 - Bearing
OPS - Old - 80 - Replacement Front Bearing
OPS - Pro - 60 - Replacement Front Bearing
OPS - Rotor BRGS - 21 - Replacement Front Bearing
OS Engines® - 21 RX-B RX-M - Replacement Front Bearing
OS Engines® - 40 H - 2 Stroke - Replacement Front Bearing
OS Engines® - H Rear Rotor - 60 - Replacement Front Bearing
OS Engines® - Max-H 40 - Replacement Front Bearing
OS Engines® - Outboard Marine - 16 - Replacement Front Bearing
OS Engines® - RG - 61 - Replacement Front Bearing
OS Engines® - RG P - 21 - Replacement Front Bearing
OS Engines® - RG-M Marine - 21 - Replacement Front Bearing
OS Engines® - RG-MX - 21 - Replacement Front Bearing
OS Engines® - RGX P - 21 - Replacement Front Bearing
OS Engines® - RX - 140 - Replacement Front Bearing
OS Engines® - RX With 10C - 15 - Replacement Front Bearing
OS Engines® - RX-B - 140 - Replacement Front Bearing
OS Engines® - RX-M Marine - 61 - Replacement Front Bearing
OS Engines® - RZ-B - 61 - Replacement Front Bearing
OS Engines® - RZ-BP - 21 - Replacement Front Bearing
OS Engines® - RZ-M - 21 - Replacement Front Bearing
OS Engines® - RZ-R P - 21 - Replacement Front Bearing
OS Engines® - RZ-V01B P - 21 - Replacement Front Bearing
OS Engines® - RZ-V99B - 21 - Replacement Front Bearing
OS Engines® - RZ-V99B P - 21 - Replacement Front Bearing
OS Engines® - SZ-H - 32 - Replacement Front Bearing
OS Engines® - TM - 37 - Bearing
OS Engines® - TM - 37 - Replacement Front Bearing
OS Engines® - TM - 91 - Bearing
OS Engines® - TM - 91 - Replacement Front Bearing
OS Engines® - TZ - 12 - Replacement Front Bearing
OS Engines® - VG - 25 - Bearing
OS Engines® - VG - 25 - Replacement Front Bearing
OS Engines® - VG P - 21 - Replacement Front Bearing
OS Engines® - VG-P - 30 - Replacement Front Bearing
OS Engines® - VZ-B - 40 - Bearing
OS Engines® - VZ-B - 40 - Replacement Front Bearing
OS Engines® - VZ-B V-Spec T 21 - 46 - Replacement Front Bearing
OS Engines® - VZ-R - 46 - Bearing
OS Engines® - VZ-R - 46 - Replacement Front Bearing
OS Engines® - VZ-R P With 20K - 21 - Replacement Front Bearing
OS Engines® - XM Marine Outboard - 61 - Replacement Front Bearing
Picco® - 15 - 2 Stroke - Replacement Front Bearing
Picco® - 15 All Models - Replacement Front Bearing
Picco® - 21 EXR - 2 Stroke - Replacement Front Bearing
Picco® - 40 - 2 Stroke - Replacement Front Bearing
Picco® - 40 Pylon - 2 Stroke - Replacement Front Bearing
Picco® - 45 - 2 Stroke - Replacement Front Bearing
Picco® - 45 EXR - 2 Stroke - Replacement Front Bearing
Picco® - 45 Pylon - 2 Stroke - Replacement Front Bearing
Picco® - 67 - Replacement Front Bearing
Picco® - 90 All Models - Replacement Front Bearing
Picco® - EXR Silver Blue Head - 67 - Replacement Front Bearing
Picco® - F1 All Models - Replacement Front Bearing
Picco® - F1 -P5 21 - Replacement Front Bearing
Picco® - P3 - 12 - Replacement Front Bearing
Picco® - P5 - 26 - Replacement Front Bearing
Picco® - P5 EXR - 21 - Replacement Front Bearing
Picco® - P6 - 21 - Replacement Front Bearing
Picco® - P7-Evo - 21 - Replacement Front Bearing
Picco® - P7-R - 21 - Replacement Front Bearing
Picco® - RS21 3.5cc Mega - Replacement Front Bearing
Picco® - XP - 21 - Replacement Front Bearing
PIP Marine - A90HP 4 BGS - 21 - Replacement Front Bearing
Power Racing® - 21 - 90 - Replacement Front Bearing
Power Racing® - 26 - 21 - Replacement Front Bearing
Racers - Axial - 15 - Bearing
Racers - Axial - 15 - Replacement Front Bearing
Racers - Edge - 21 - Bearing
Racers - Edge - 21 - Replacement Front Bearing
RB - 15 Small BLOCK - 32 - Replacement Front Bearing
RB - 2.5cc 15 - Replacement Front Bearing
RB - 25 All Models - Replacement Front Bearing
RB - 3.5cc 21 - Replacement Front Bearing
RB - 32 - Replacement Front Bearing
RB - All Models - Replacement Front Bearing
RB - C4 - 32 - Replacement Front Bearing
RB - C5 Buggy - 12 - Replacement Front Bearing
RB - C5 Rody - 15 - Replacement Front Bearing
RB - Concept V12 - C4 - Replacement Front Bearing
RB - Concept.21 WS7 - 21 - Replacement Front Bearing
RB - RB C6 - 21 - Bearing
RB - RB C6 - 23 - Replacement Front Bearing
RB - S5 - 21 - Replacement Front Bearing
RB - S7 EUROPA - 21 - Replacement Front Bearing
RB - S7II - 5 - Replacement Front Bearing
RB - WS7 - 21 - Replacement Front Bearing
RB - WS7II - 12 - Replacement Front Bearing
RB - WS7III - 21 - Replacement Front Bearing
RB - X - 21 - Replacement Front Bearing
Reedy - VR - 21 - Front Bearing
Rex Nova Rossi® - 7 SB - 3.5 - Replacement Front Bearing
Rex Nova Rossi® - PR21 P5T/N - Replacement Front Bearing
Rex® - 3.5 Serpent - 15 - Replacement Front Bearing
Rex® - SB - 120 - Replacement Front Bearing
Rex® - Serpent - 21 - Replacement Front Bearing
Rossi® - 21 - Replacement Front Bearing
Rossi® - 21 Revo Marine - Replacement Front Bearing
Rossi® - 61 All Models - Replacement Front Bearing
Rossi® - Blackhead - 91 - Replacement Front Bearing
Rossi® - Nitro - 60 - Replacement Front Bearing
Rossi® - Revo Marine - 40 - Replacement Front Bearing
Serpent® - Mega ZX 12 - 60 - Replacement Front Bearing
SH - SH-21 Pro Competition Buggy - 90 - Bearing
SH - SH-21 Pro Competition Buggy - 90 - Replacement Front Bearing
SH - SH-28 - 21 - Replacement Front Bearing
SH - SH-28 Pro - 28 - Replacement Front Bearing
Sport Werks® - All - 23 - Replacement Front Bearing
Stalker® - Pro - 21 - Replacement Front Bearing
STS - 12 - 46 - Replacement Front Bearing
STS - 21-30 - 51 - Bearing
STS - 21-30 - 51 - Replacement Front Bearing
Super Tigre® - 12 All Models - Replacement Front Bearing
Super Tigre® - Bull Ring - 31 - Replacement Front Bearing
Super Tigre® - Bull Ring - 46 - Bearing
Super Tigre® - Bull Ring - 46 - Replacement Front Bearing
Super Tigre® - G - 21 - Replacement Front Bearing
Super Tigre® - G - 29 - Bearing
Super Tigre® - G - 29 - Replacement Front Bearing
Super Tigre® - G - 46 - Replacement Front Bearing
Super Tigre® - G Sport W-Muffler - 60 - Bearing
Super Tigre® - G Sport W-Muffler - 60 - Replacement Front Bearing
Super Tigre® - G Sport W-Muffler - 91 - Replacement Front Bearing
Super Tigre® - G21 - 2 Stroke - Replacement Front Bearing
Super Tigre® - G21 - 49 - Replacement Front Bearing
Super Tigre® - G29 - Replacement Front Bearing
Super Tigre® - G34 - 35 - Replacement Front Bearing
Super Tigre® - G49 Sport W-Muffler - Replacement Front Bearing
Super Tigre® - G51 Ring - 2300 - Replacement Front Bearing
Super Tigre® - G51 Ring - 34 - Bearing
Super Tigre® - G51 Ring - 34 - Replacement Front Bearing
Super Tigre® - G60 - Replacement Front Bearing
Super Tigre® - GS40 - 2 Stroke - Replacement Front Bearing
Super Tigre® - GS40 Ring - 34 - Bearing
Super Tigre® - GS40 Ring - 34 - Replacement Front Bearing
Super Tigre® - GS45 - 2 Stroke - Replacement Front Bearing
Super Tigre® - GS45 ABC - 40 - Bearing
Super Tigre® - GS45 ABC - 40 - Replacement Front Bearing
Super Tigre® - Marine - 45 - Bearing
Super Tigre® - Marine - 45 - Replacement Front Bearing
Super Tigre® - S - 15 - Replacement Front Bearing
Super Tigre® - S - 40 - Bearing
Super Tigre® - S - 40 - Replacement Front Bearing
Super Tigre® - S - 71 - Bearing
Super Tigre® - S - 71 - Replacement Front Bearing
Super Tigre® - S40 ABC - 2 Stroke - Replacement Front Bearing
Super Tigre® - S40 Ring - 2 Stroke - Replacement Front Bearing
Super Tigre® - S45 Ring - 2 Stroke - Replacement Front Bearing
Super Tigre® - S45K - 2 Stroke - Replacement Front Bearing
Super Tigre® - SK - 18 - Bearing
Super Tigre® - SK - 18 - Replacement Front Bearing
Super Tigre® - ST - 18 - Bearing
Super Tigre® - ST - 45 - Bearing
Super Tigre® - ST - 45 - Replacement Front Bearing
Super Tigre® - ST K - 56 - Bearing
Super Tigre® - ST K - 56 - Replacement Front Bearing
Super Tigre® - ST Old - 51 - Bearing
Super Tigre® - ST Old - 51 - Replacement Front Bearing
Super Tigre® - ST51 - Replacement Front Bearing
Super Tigre® - ST60 RC - Replacement Front Bearing
Super Tigre® - ST-60K - CL RC W-Muffler - Replacement Front Bearing
Super Tigre® - X - 15 - Replacement Front Bearing
Super Tigre® - X - 21 - Bearing
Super Tigre® - X - 21 - Replacement Front Bearing
Super Tigre® - X - 60 - Replacement Front Bearing
Super Tigre® - X21 - Replacement Front Bearing
Super Tigre® - X40 - Replacement Front Bearing
SVN Crono® - RS7 - 40 - Replacement Front Bearing
Thunder Tiger® - 21 O-B - 2 Stroke - Replacement Front Bearing
Thunder Tiger® - Evo - 70 - Replacement Front Bearing
Thunder Tiger® - Marine - 90 - Replacement Front Bearing
Thunder Tiger® - Pro - 15 - Replacement Front Bearing
Thunder Tiger® - Pro 21B - RC ABS-RC - Replacement Front Bearing
TOP® - BT3.5BK - 54 - Replacement Front Bearing
Trinity® - Adam Drake - 3.3 - Replacement Front Bearing
Webra® - 145 All Models - Replacement Front Bearing
Webra® - 28 All Models - Replacement Front Bearing
Webra® - 32 Heli - Replacement Front Bearing
Webra® - 40 - Replacement Front Bearing
Webra® - 61 All Models - Replacement Front Bearing
Webra® - Heli - 2.2 - Replacement Front Bearing
Webra® - Speed Heli MOD 1023H - 61 - Replacement Front Bearing
Werks® - TL21B3 - 35 - Replacement Front Bearing
Werks® - TL21B7 - 35 - Replacement Front Bearing
XTM Racing - 18 - 91 - Replacement Front Bearing
XTM Racing - 24.7 Pro - 21 - Replacement Front Bearing
XTM Racing - 24.7 Pull Start - 24.7 - Replacement Front Bearing

Cross References

Nova Rossi® 17003
Reedy 28012
BOSCH® 3600905012
WIB 607-T9H-C3WWAF2
ISO 607TWZC3P13
ISO 607TW-Z-C3-P13
GRW 607-ZC14-20GPRTN9HG340
WIB 607-Z-T9H-C3WWAF2
WIB 607-Z-T9H-P6-LT20
607T9HZC823AF12J
607ZT9HC3WWAF2
607ZT9HP6LT20
607ZC1420GPRTN9HG340
607T9HC3WWAF2
607 Basic Size Ref

View full details

607-Z-MC45-T9H-AF12-JDiagram

607-Z-MC45-T9H-AF12-JImage
