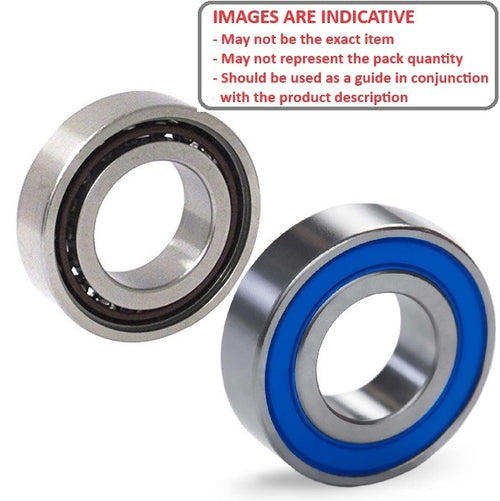

607-RB-MC45-T9H-AF12-E - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

  • ID (d) : 7.000 mm + 0.000 / - 0.0075
    (Equiv. 0.276 in.)
  • OD (D) 19.000 mm + 0.000 / - 0.010
    (Equiv. 0.748 in.)
  • Width (B) 6.000 mm + 0.000 / - 0.125
    (Equiv. 0.236 in.)
  • Precision Grade Abec 1
  • Closure Type RB
  • Bearing Type Radial
  • Made In European WIB/GRW
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name AF12 Aeroshell Fluid 12
  • Basic Part 607
  • Limiting Speed 65360
  • Cage Type Polyamide
  • Static Load Rating KGf 91
  • Dynamic Load Rating KGf 238
  • Radii 0.30 mm
  • Inner Shoulder (UI) 9.00mm
  • Outer Shoulder (UO) 16.50 mm
  • Number of Balls 6
  • Clearance C823 (8 to 23)
  • Precision Grade Abec 1
  • Closure Type RB
  • Max Temperature 80 Deg. C
Country of Origin: CH

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • RC Nitro Engine Parts
  • Nova Rossi - Plus 21-5 - Front Bearing 7-19-6mm
  • Nova Rossi - Plus 21-5T - Front Bearing 7-19-6mm
  • ASP - 40 - Front Bearing 7-19-6mm
  • ASP - 40 All Models - Front Bearing 7-19-6mm
  • ASP - 46 - Front Bearing 7-19-6mm
  • ASP - 46 All Models - Front Bearing 7-19-6mm
  • ASP - 52 Old - Front Bearing 7-19-6mm
  • Axe Rossi - LSK - 21 - Front Bearing 7-19-6mm
  • Axe Rossi - R21 - 21 - Front Bearing 7-19-6mm
  • Axe Rossi - ROSSI - 21 - Front Bearing 7-19-6mm
  • Axial - Spec 1S Size 28 - Front Bearing 7-19-6mm
  • Axial - Spec 1S Size 32 - Front Bearing 7-19-6mm
  • Bergonzoni - XR21 - 28 RR Engine - Front Bearing 7-19-6mm
  • Bluebird - 21 - Front Bearing 7-19-6mm
  • Bluebird - 28 All Models - Front Bearing 7-19-6mm
  • CEN - Matrix Ringer TR.28 - 25 - Front Bearing 7-19-6mm
  • CMB - 15 - Front Bearing 7-19-6mm
  • CMB - 21 - Front Bearing 7-19-6mm
  • CMB - 21 Evo Redhead 14mm Crank - Front Bearing 7-19-6mm
  • CMB - 21 LS Green Head - Front Bearing 7-19-6mm
  • CMB - 67 All Models - Front Bearing 7-19-6mm
  • CMB - EV02 - 67 - Front Bearing 7-19-6mm
  • CMB - EVO2 - 45 - Front Bearing 7-19-6mm
  • CMB - Lower Unit - 67 - Front Bearing 7-19-6mm
  • CMB - LS Green Head Marine - 45 - Front Bearing 7-19-6mm
  • CMB - Old - 21 - Front Bearing 7-19-6mm
  • CMB - Red Head Marine - 21 - Front Bearing 7-19-6mm
  • CMB - RS - 35 - Front Bearing 7-19-6mm
  • CMB - TT Marine - 21 - Front Bearing 7-19-6mm
  • CMB - Valvola 3.5CC - 35 - Front Bearing 7-19-6mm
  • Collari - LC21B3 - 21 - Front Bearing 7-19-6mm
  • Collari - WRXLC21B7 - 21 - Front Bearing 7-19-6mm
  • Como - 21 All Models - Front Bearing 7-19-6mm
  • Como - 40 -51 - Front Bearing 7-19-6mm
  • Como - 40 All Models - Front Bearing 7-19-6mm
  • Como - All Models - Front Bearing 7-19-6mm
  • Duratrax - Torque 21 - 40 - Front Bearing 7-19-6mm
  • Dynamite - Mach 26 - 21 - Front Bearing 7-19-6mm
  • Dynamite - Mach 427 - 26 - Front Bearing 7-19-6mm
  • Dynamite - Platinum SG Off Road - 26 - Front Bearing 7-19-6mm
  • Dynamite - Platinum SG Off Road - 427 - Front Bearing 7-19-6mm
  • Dynamite - Platinum SG With PS Off Road - 0.21 - Front Bearing 7-19-6mm
  • Enya - 40 - Front Bearing 7-19-6mm
  • Enya - 4C - Old - 90 - Front Bearing 7-19-6mm
  • Enya - X - 45 - Front Bearing 7-19-6mm
  • Fantom - FR27 - 46 - Front Bearing 7-19-6mm
  • Force - 21 - Front Bearing 7-19-6mm
  • Force - 61 All Models - Front Bearing 7-19-6mm
  • Force - All Other Rear Exhaust - 21 - Front Bearing 7-19-6mm
  • Force - E- 1501 Rear Exhaust EFRA - 0.21 - Front Bearing 7-19-6mm
  • Force - E-1503 Rear Exhaust Not EFRA - 0.15 - Front Bearing 7-19-6mm
  • Force - E-2101 Rear Exhaust - 0.15 - Front Bearing 7-19-6mm
  • Force - E-2106 Rear Exhaust - 0.21 - Front Bearing 7-19-6mm
  • GS General Silicone - 15R - 61 - Front Bearing 7-19-6mm
  • GS General Silicone - R21B01P - 0.15 - Front Bearing 7-19-6mm
  • GS General Silicone - R25MT - 21 - Front Bearing 7-19-6mm
  • HP - 21 - Front Bearing 7-19-6mm
  • HP - 46 All Models - Front Bearing 7-19-6mm
  • HP - 61 Old 1975 - Front Bearing 7-19-6mm
  • HP - Old/1975 - 40 - Front Bearing 7-19-6mm
  • HP - VT 4C - 49 - Front Bearing 7-19-6mm
  • HPI - 21 - Front Bearing 7-19-6mm
  • HPI - Nitro Star K4.6 - 12 - Front Bearing 7-19-6mm
  • HPI - Pro RSC - 15 - Front Bearing 7-19-6mm
  • HPI - RSC Pro - 4.6 CC - Front Bearing 7-19-6mm
  • Irvine - 15 New Turbo - 2 Stroke - Front Bearing 7-19-6mm
  • Irvine - New Turbo - 40 - Front Bearing 7-19-6mm
  • JP Racing - B8 - 90 - Front Bearing 7-19-6mm
  • JP Racing - PR.21 P5 Off Road - 95 - Front Bearing 7-19-6mm
  • JP Racing - PR.21 Race World - 95 - Front Bearing 7-19-6mm
  • K.B - SS Outboard Marine Engine - 0.15 - Front Bearing 7-19-6mm
  • LRP Nitro - Z.12R Team Spec 2 - 12 - Front Bearing 7-19-6mm
  • LRP Nitro - Z.21R - 12 - Front Bearing 7-19-6mm
  • LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Front Bearing 7-19-6mm
  • Mac - 28 - Front Bearing 7-19-6mm
  • Mac - Inboard - 67 - Front Bearing 7-19-6mm
  • Mac - OB PTO - 84 - Front Bearing 7-19-6mm
  • Mac - Outboard - 21 - Front Bearing 7-19-6mm
  • Magnum - 40XL - 2 Stroke - Front Bearing 7-19-6mm
  • Magnum - 46 - 2 Stroke - Front Bearing 7-19-6mm
  • Magnum - 53 - 2 Stroke - Front Bearing 7-19-6mm
  • Magnum Power - XL - 32 - Front Bearing 7-19-6mm
  • Magnum Power - XL - 36 - Front Bearing 7-19-6mm
  • Magnum Power - XL - 40 - Front Bearing 7-19-6mm
  • Magnum Power - XL - 52 - Front Bearing 7-19-6mm
  • MAZ - 52 All Models - Front Bearing 7-19-6mm
  • MDS - 40 All Models - Front Bearing 7-19-6mm
  • MDS - 58 All Models - Front Bearing 7-19-6mm
  • Moki - All - 50 - Front Bearing 7-19-6mm
  • Moki - All - 61 - Front Bearing 7-19-6mm
  • Moki - Marine - 2.1 - Front Bearing 7-19-6mm
  • Mugen - MR21 BO1 - 90 - Front Bearing 7-19-6mm
  • Mugen - MR21 R01 - 15 - Front Bearing 7-19-6mm
  • Mugen - MT - 3.6 - Front Bearing 7-19-6mm
  • MVVS - 1.6 All Models - Front Bearing 7-19-6mm
  • MVVS - 21 - Front Bearing 7-19-6mm
  • MVVS - 40 GRRT - GFA - GFR - Front Bearing 7-19-6mm
  • MVVS - GFR - 15 - Front Bearing 7-19-6mm
  • MVVS - GFR - 77 - Front Bearing 7-19-6mm
  • MVVS - GFS - 40 - Front Bearing 7-19-6mm
  • MVVS - Glow Engine - 1.5 - Front Bearing 7-19-6mm
  • MVVS - Glow Engine - 61 - Front Bearing 7-19-6mm
  • MVVS - GRRT - 40 - Front Bearing 7-19-6mm
  • Nosram - RS 21 Evo - 25 - Front Bearing 7-19-6mm
  • Nova Rossi - 09.20-C - 25 - Front Bearing 7-19-6mm
  • Nova Rossi - 2.0 CC Speed - Front Bearing 7-19-6mm
  • Nova Rossi - 2000 10 Port - 15 - Front Bearing 7-19-6mm
  • Nova Rossi - 7 SB - 3.5 Rex - Front Bearing 7-19-6mm
  • Nova Rossi - BR21SB01 Rex - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - BS21SB - 2000 - Front Bearing 7-19-6mm
  • Nova Rossi - BT21SB01 Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - CR12PR2/N Rex - 60 10CCSL - Front Bearing 7-19-6mm
  • Nova Rossi - CR12PS1/N Rex - 60 10CCSL - Front Bearing 7-19-6mm
  • Nova Rossi - CR12PS2/N Rex - 60 10CCSL - Front Bearing 7-19-6mm
  • Nova Rossi - CR12R1/N Rex - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CR12R2/N Rex - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CR12S1/N Rex - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12PR1/N Rex - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12PR1/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12PR2/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12PS1/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12PS2/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12R2/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12RS1/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12S1/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CT12S2/N Top - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12 - Front Bearing 7-19-6mm
  • Nova Rossi - CX12PR1/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12PR2/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12PS1/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12PS2/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12R1/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12R2/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12S1/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX12S2/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - CX15R/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - ER15R Rex - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - ET Top - 15 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - ET15R Top - 15 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - JP Pro - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - MX12PR - 12 - Front Bearing 7-19-6mm
  • Nova Rossi - N528XR - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - N528XRP - 15 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - N528XSP - 12 - Front Bearing 7-19-6mm
  • Nova Rossi - Nova - 28 4.66CC - Front Bearing 7-19-6mm
  • Nova Rossi - P5X - 15 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - Plus 21 SK - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - Plus 21-3 - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - Plus 5 - 21 - Front Bearing 7-19-6mm
  • Nova Rossi - Plus 5T - 21 - Front Bearing 7-19-6mm
  • Nova Rossi - PR21 P5T/N Rex - Front Bearing 7-19-6mm
  • Nova Rossi - PR21P5/N Rex - 21 - Front Bearing 7-19-6mm
  • Nova Rossi - PR21P5T/N Rex - 21 - Front Bearing 7-19-6mm
  • Nova Rossi - PR21R1WC Rex - 12 - Front Bearing 7-19-6mm
  • Nova Rossi - PR321P Rex - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PR421B Rex - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PR421P Rex - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT21P5 Top - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT21P5N - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT21P5T Top - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT21R1WC Top - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT21RR1/N Top - 21 2.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT321P Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - PT421P Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - R528XR Rex - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - R528XRP Rex - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - R528XSP Rex - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - RBC5BB - 28 4.6CC - Front Bearing 7-19-6mm
  • Nova Rossi - Rex 350 Short Stroke - Front Bearing 7-19-6mm
  • Nova Rossi - RS12 - Front Bearing 7-19-6mm
  • Nova Rossi - RS12TS1 - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX21-FR/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX21MR2/N - 12 2.1CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX21P5 - 12 - Front Bearing 7-19-6mm
  • Nova Rossi - RX21P5T - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX21P5X New - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX21R1WC - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX21RR1/N - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - RX321P - 21 - Front Bearing 7-19-6mm
  • Nova Rossi - RX421P - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - S421B - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - S421B/N - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - S421R - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - SX - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - T421B Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - T421R Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - T528XR Top - 12 21CC - Front Bearing 7-19-6mm
  • Nova Rossi - T528XRP Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - T528XSP Top - 21 3.5CC - Front Bearing 7-19-6mm
  • Nova Rossi - TR15R Rex - 28 4.66CC - Front Bearing 7-19-6mm
  • Nova Rossi - TT15R Top - 12 21.CC - Front Bearing 7-19-6mm
  • Nova Rossi - TX15R/N - 12 21.CC - Front Bearing 7-19-6mm
  • Ofna - 21 - 15 2.5CC - Front Bearing 7-19-6mm
  • Ofna - Force 12 Red Head - 21 - Front Bearing 7-19-6mm
  • Ofna - Hyper.12 - 15 - Front Bearing 7-19-6mm
  • Ofna - Hyper.12 - 21 - Front Bearing 7-19-6mm
  • OPS - 12 - Front Bearing 7-19-6mm
  • OPS - 21 -40 -45 - Front Bearing 7-19-6mm
  • OPS - 3.5 -21 Pro - Front Bearing 7-19-6mm
  • OPS - 35 All Models - Front Bearing 7-19-6mm
  • OPS - 40 All Models - Front Bearing 7-19-6mm
  • OPS - 45 - Front Bearing 7-19-6mm
  • OPS - 90 All Models - Front Bearing 7-19-6mm
  • OPS - Old - 80 - Front Bearing 7-19-6mm
  • OPS - Pro - 60 - Front Bearing 7-19-6mm
  • OPS - Rotor BRGS - 21 - Front Bearing 7-19-6mm
  • OS - 21 RX-B RX-M - Front Bearing 7-19-6mm
  • OS - 40 H - 2 Stroke - Front Bearing 7-19-6mm
  • OS - H Rear Rotor - 60 - Front Bearing 7-19-6mm
  • OS - Max-H 40 - Front Bearing 7-19-6mm
  • OS - Outboard Marine - 16 - Front Bearing 7-19-6mm
  • OS - RG - 61 - Front Bearing 7-19-6mm
  • OS - RG P - 21 - Front Bearing 7-19-6mm
  • OS - RG-M Marine - 21 - Front Bearing 7-19-6mm
  • OS - RG-MX - 21 - Front Bearing 7-19-6mm
  • OS - RGX P - 21 - Front Bearing 7-19-6mm
  • OS - RX - 140 - Front Bearing 7-19-6mm
  • OS - RX With 10C - 15 - Front Bearing 7-19-6mm
  • OS - RX-B - 140 - Front Bearing 7-19-6mm
  • OS - RX-M Marine - 61 - Front Bearing 7-19-6mm
  • OS - RZ-B - 61 - Front Bearing 7-19-6mm
  • OS - RZ-BP - 21 - Front Bearing 7-19-6mm
  • OS - RZ-M - 21 - Front Bearing 7-19-6mm
  • OS - RZ-R P - 21 - Front Bearing 7-19-6mm
  • OS - RZ-V01B P - 21 - Front Bearing 7-19-6mm
  • OS - RZ-V99B - 21 - Front Bearing 7-19-6mm
  • OS - RZ-V99B P - 21 - Front Bearing 7-19-6mm
  • OS - SZ-H - 32 - Front Bearing 7-19-6mm
  • OS - TM - 37 - Front Bearing 7-19-6mm
  • OS - TM - 91 - Front Bearing 7-19-6mm
  • OS - TZ - 12 - Front Bearing 7-19-6mm
  • OS - VG - 25 - Front Bearing 7-19-6mm
  • OS - VG P - 21 - Front Bearing 7-19-6mm
  • OS - VG-P - 30 - Front Bearing 7-19-6mm
  • OS - VZ-B - 40 - Front Bearing 7-19-6mm
  • OS - VZ-B V-Spec T 21 - 46 - Front Bearing 7-19-6mm
  • OS - VZ-R - 46 - Front Bearing 7-19-6mm
  • OS - VZ-R P With 20K - 21 - Front Bearing 7-19-6mm
  • OS - XM Marine Outboard - 61 - Front Bearing 7-19-6mm
  • Picco - 15 - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 15 All Models - Front Bearing 7-19-6mm
  • Picco - 21 EXR - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 40 - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 40 Pylon - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 45 - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 45 EXR - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 45 Pylon - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 67 - Front Bearing 7-19-6mm
  • Picco - 90 All Models - Front Bearing 7-19-6mm
  • Picco - EXR Silver Blue Head - 67 - Front Bearing 7-19-6mm
  • Picco - F1 All Models - Front Bearing 7-19-6mm
  • Picco - F1 -P5 21 - Front Bearing 7-19-6mm
  • Picco - P3 - 12 - Front Bearing 7-19-6mm
  • Picco - P5 - 26 - Front Bearing 7-19-6mm
  • Picco - P5 EXR - 21 - Front Bearing 7-19-6mm
  • Picco - P6 - 21 - Front Bearing 7-19-6mm
  • Picco - P7-Evo - 21 - Front Bearing 7-19-6mm
  • Picco - P7-R - 21 - Front Bearing 7-19-6mm
  • Picco - RS21 3.5cc Mega - Front Bearing 7-19-6mm
  • Picco - XP - 21 - Front Bearing 7-19-6mm
  • PIP Marine - A90HP 4 BGS - 21 - Front Bearing 7-19-6mm
  • Power Racing - 21 - 90 - Front Bearing 7-19-6mm
  • Power Racing - 26 - 21 - Front Bearing 7-19-6mm
  • Racers - Axial - 15 - Front Bearing 7-19-6mm
  • Racers - Edge - 21 - Front Bearing 7-19-6mm
  • RB - 15 Small BLOCK - 32 - Front Bearing 7-19-6mm
  • RB - 2.5cc 15 - Front Bearing 7-19-6mm
  • RB - 25 All Models - Front Bearing 7-19-6mm
  • RB - 3.5cc 21 - Front Bearing 7-19-6mm
  • RB - 32 - Front Bearing 7-19-6mm
  • RB - All Models - Front Bearing 7-19-6mm
  • RB - C4 - 32 - Front Bearing 7-19-6mm
  • RB - C5 Buggy - 12 - Front Bearing 7-19-6mm
  • RB - C5 Rody - 15 - Front Bearing 7-19-6mm
  • RB - Concept V12 - C4 - Front Bearing 7-19-6mm
  • RB - Concept.21 WS7 - 21 - Front Bearing 7-19-6mm
  • RB - RB C6 - 23 - Front Bearing 7-19-6mm
  • RB - S5 - 21 - Front Bearing 7-19-6mm
  • RB - S7 EUROPA - 21 - Front Bearing 7-19-6mm
  • RB - S7II - 5 - Front Bearing 7-19-6mm
  • RB - WS7 - 21 - Front Bearing 7-19-6mm
  • RB - WS7II - 12 - Front Bearing 7-19-6mm
  • RB - WS7III - 21 - Front Bearing 7-19-6mm
  • RB - X - 21 - Front Bearing 7-19-6mm
  • Rex - 3.5 Serpent - 15 - Front Bearing 7-19-6mm
  • Rex - SB - 120 - Front Bearing 7-19-6mm
  • Rex - Serpent - 21 - Front Bearing 7-19-6mm
  • Rex Nova Rossi - 7 SB - 3.5 - Front Bearing 7-19-6mm
  • Rex Nova Rossi - PR21 P5T/N - Front Bearing 7-19-6mm
  • Rossi - 21 Revo Marine - Front Bearing 7-19-6mm
  • Rossi - 61 All Models - Front Bearing 7-19-6mm
  • Rossi - Blackhead - 91 - Front Bearing 7-19-6mm
  • Rossi - Nitro - 60 - Front Bearing 7-19-6mm
  • Rossi - Revo Marine - 40 - Front Bearing 7-19-6mm
  • Serpent - Mega ZX 12 - 60 - Front Bearing 7-19-6mm
  • SH - SH-21 Pro Competition Buggy - 90 - Front Bearing 7-19-6mm
  • SH - SH-28 - 21 - Front Bearing 7-19-6mm
  • SH - SH-28 Pro - 28 - Front Bearing 7-19-6mm
  • Sport Werks - All - 23 - Front Bearing 7-19-6mm
  • Stalker - Pro - 21 - Front Bearing 7-19-6mm
  • STS - 12 - 46 - Front Bearing 7-19-6mm
  • STS - 21-30 - 51 - Front Bearing 7-19-6mm
  • Super Tigre - 12 All Models - Front Bearing 7-19-6mm
  • Super Tigre - Bull Ring - 31 - Front Bearing 7-19-6mm
  • Super Tigre - Bull Ring - 46 - Front Bearing 7-19-6mm
  • Super Tigre - G - 21 - Front Bearing 7-19-6mm
  • Super Tigre - G - 29 - Front Bearing 7-19-6mm
  • Super Tigre - G - 46 - Front Bearing 7-19-6mm
  • Super Tigre - G Sport W-Muffler - 60 - Front Bearing 7-19-6mm
  • Super Tigre - G Sport W-Muffler - 91 - Front Bearing 7-19-6mm
  • Super Tigre - G21 - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - G21 - 49 - Front Bearing 7-19-6mm
  • Super Tigre - G29 - Front Bearing 7-19-6mm
  • Super Tigre - G34 - 35 - Front Bearing 7-19-6mm
  • Super Tigre - G49 Sport W-Muffler - Front Bearing 7-19-6mm
  • Super Tigre - G51 Ring - 2300 - Front Bearing 7-19-6mm
  • Super Tigre - G51 Ring - 34 - Front Bearing 7-19-6mm
  • Super Tigre - G60 - Front Bearing 7-19-6mm
  • Super Tigre - GS40 - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - GS40 Ring - 34 - Front Bearing 7-19-6mm
  • Super Tigre - GS45 - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - GS45 ABC - 40 - Front Bearing 7-19-6mm
  • Super Tigre - Marine - 45 - Front Bearing 7-19-6mm
  • Super Tigre - S - 15 - Front Bearing 7-19-6mm
  • Super Tigre - S - 40 - Front Bearing 7-19-6mm
  • Super Tigre - S - 71 - Front Bearing 7-19-6mm
  • Super Tigre - S40 ABC - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - S40 Ring - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - S45 Ring - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - S45K - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - SK - 18 - Front Bearing 7-19-6mm
  • Super Tigre - ST - 45 - Front Bearing 7-19-6mm
  • Super Tigre - ST K - 56 - Front Bearing 7-19-6mm
  • Super Tigre - ST Old - 51 - Front Bearing 7-19-6mm
  • Super Tigre - ST51 - Front Bearing 7-19-6mm
  • Super Tigre - ST60 RC - Front Bearing 7-19-6mm
  • Super Tigre - ST-60K - CL RC W-Muffler - Front Bearing 7-19-6mm
  • Super Tigre - X - 15 - Front Bearing 7-19-6mm
  • Super Tigre - X - 21 - Front Bearing 7-19-6mm
  • Super Tigre - X - 60 - Front Bearing 7-19-6mm
  • Super Tigre - X21 - Front Bearing 7-19-6mm
  • Super Tigre - X40 - Front Bearing 7-19-6mm
  • SVN Crono - RS7 - 40 - Front Bearing 7-19-6mm
  • Thunder Tiger - 21 O-B - 2 Stroke - Front Bearing 7-19-6mm
  • Thunder Tiger - Evo - 70 - Front Bearing 7-19-6mm
  • Thunder Tiger - Marine - 90 - Front Bearing 7-19-6mm
  • Thunder Tiger - Pro - 15 - Front Bearing 7-19-6mm
  • Thunder Tiger - Pro 21B - RC ABS-RC - Front Bearing 7-19-6mm
  • TOP - BT3.5BK - 54 - Front Bearing 7-19-6mm
  • Trinity - Adam Drake - 3.3 - Front Bearing 7-19-6mm
  • Webra - 145 All Models - Front Bearing 7-19-6mm
  • Webra - 28 All Models - Front Bearing 7-19-6mm
  • Webra - 32 Heli - Front Bearing 7-19-6mm
  • Webra - 40 - Front Bearing 7-19-6mm
  • Webra - 61 All Models - Front Bearing 7-19-6mm
  • Webra - Heli - 2.2 - Front Bearing 7-19-6mm
  • Webra - Speed Heli MOD 1023H - 61 - Front Bearing 7-19-6mm
  • Werks - TL21B3 - 35 - Front Bearing 7-19-6mm
  • Werks - TL21B7 - 35 - Front Bearing 7-19-6mm
  • XTM Racing - 18 - 91 - Front Bearing 7-19-6mm
  • XTM Racing - 24.7 Pro - 21 - Front Bearing 7-19-6mm
  • XTM Racing - 24.7 Pull Start - 24.7 - Front Bearing 7-19-6mm

Cross References

  • WIB 607-2RSF-T9H-C3WWAF2
  • WIB 607-2RSF-T9H-C3-WW-AF2
  • WIB 607-RSF-T9H-C3WWAF2
  • WIB 607-RSF-T9H-C3-WW-AF2
  • 607RSFT9HC3WWAF2
  • 607T9HRBC823AF12E
  • 607 Basic Size Ref
View full details
607-RB-MC45-T9H-AF12-EDiagram607-RB-MC45-T9H-AF12-EImage
