W0070-CU-016-032-S3 - Datasheet
Brighton Best
Category Information

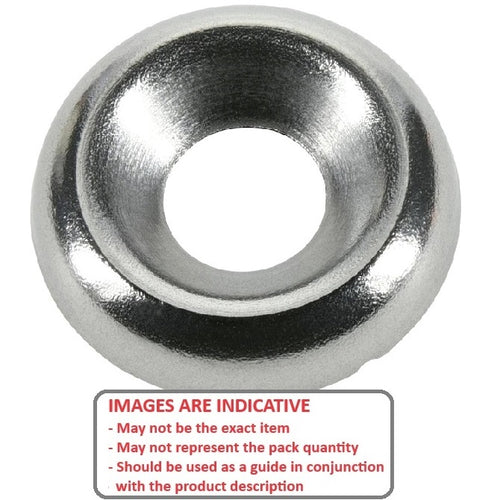

Washers - Cup - Stainless SteelStainless Steel Cup Washers. Stanless steel cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data

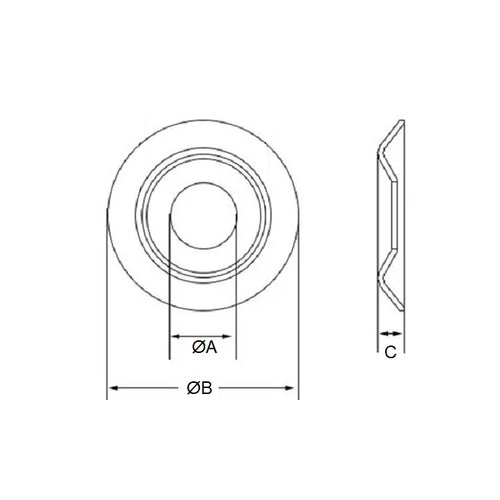

- Nominal Inside Diameter (A)
:
7
mm
(Equiv. 0.276 in.) - Nominal Outside Diameter (B)
15.90
mm
(Equiv. 0.626 in.) - Nom. Section (C)
3.20
mm
(Equiv. 0.126 in.) - Size M7
- Actual ID (Ref) 7.2 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 223010
