S687A-ZZ-MC3-2OR - Datasheet
MBA
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

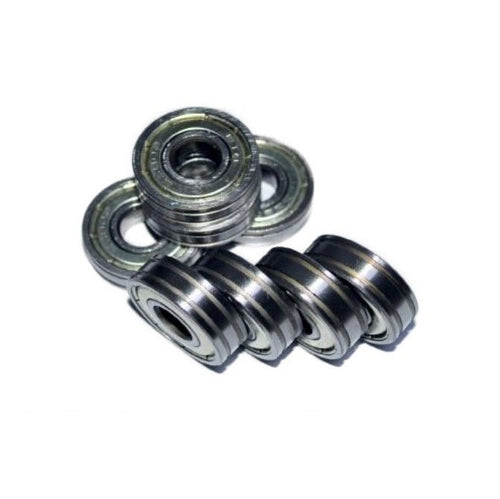

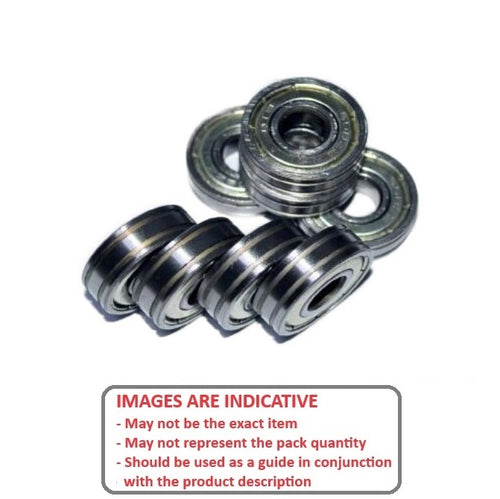

Deleted Item. Available while stocks last. Special bearing with 2 o-rings in OD grooves.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
7.000
mm
+ 0.000 / - 0.004
(Equiv. 0.276 in.) - OD (D)
14.000
mm
+ 0.000 / - 0.005
(Equiv. 0.551 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.040
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial with 2 Oring Grooves
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- Muss - Micromat-Athlet Type 200 Handpiece - Chuck End Bearing
Cross References
- MUSS 0229
- MUSS MUSS0229
