B-030H-0079-0120-NFB - Datasheet
MBA
Category Information
Belts - Timing 3.000mm Pitch - HTD - 12mm Wide12mm Wide HTD Timing 3.000mm Pitch Belts. HTD Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

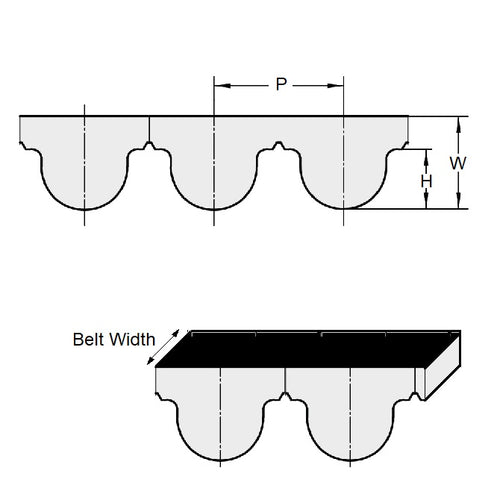

- Tooth Height (H) - 1.17mm
- Belt Height (W) - 2.41mm
- Tooth Length (T) - 1.78mm
- Pitch (P) - 3mm

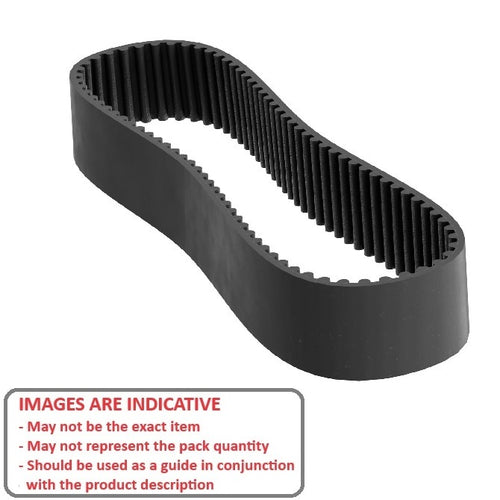

Product Data
- Number of Teeth : 79
- Length
237
mm
(Equiv. 9.331 in.) - Width
12.0
mm
(Equiv. 0.472 in.) - Reinforcement Fibre Glass
- Appearance Black
- Min Temperature (C) -30 Deg C
- Max Temperature (C) 90 Deg C
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-HTBN237H3M-120
- CHTBN237H3M120
