BV12-00787-AX31 - Datasheet

MBA

Category Information

Belts - Vee - 12.7 x 7.9mm Notched AX

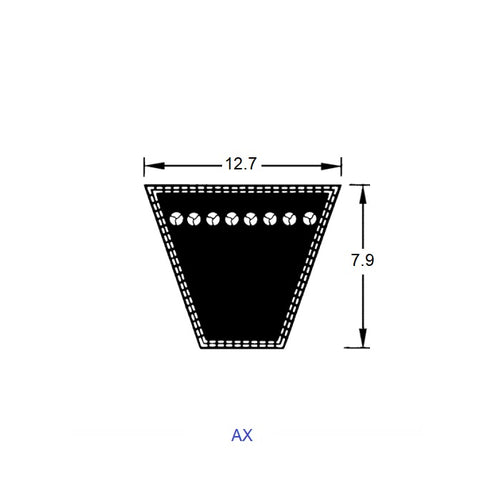

12.7 x 7.9mm Notched AX Vee Belts. 12.7mm Top Width x 7.9mm Height.

  • An expanded range may be available on special order. Please enquire.
  • Sizes are nominal and may vary slightly.

Product Data

  • Inside Circumference : 787.4 (31.0 in.) mm
    (Equiv. 31 in.)
  • Type Cogged V-Belt
  • Re-Inforcement Polyester
  • Material Natural Rubber - Raw Edge
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • BTQ-AX31
    • BTQAX31
