MSM-254C-203-CCCRP - Datasheet
MBA
Category Information

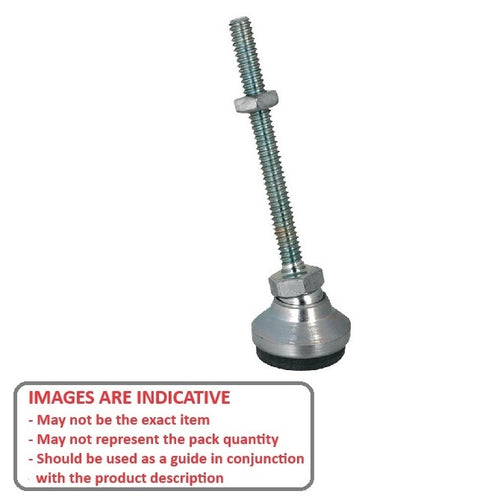

Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber PaddedRubber Padded Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
50.8
mm
(Equiv. 2 in.) - Thread Length (F) 203.2 mm
- Base Height (E) 30.94 mm
- Overall Height 254.0 mm
- Load Rating 7660 Kg
- Finish Clear Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 34.925 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K378
- MSM7660254CCCR
- TES-40
- TES40
