COL-07620-096-50-GF-AB - Datasheet
MBA
Category Information

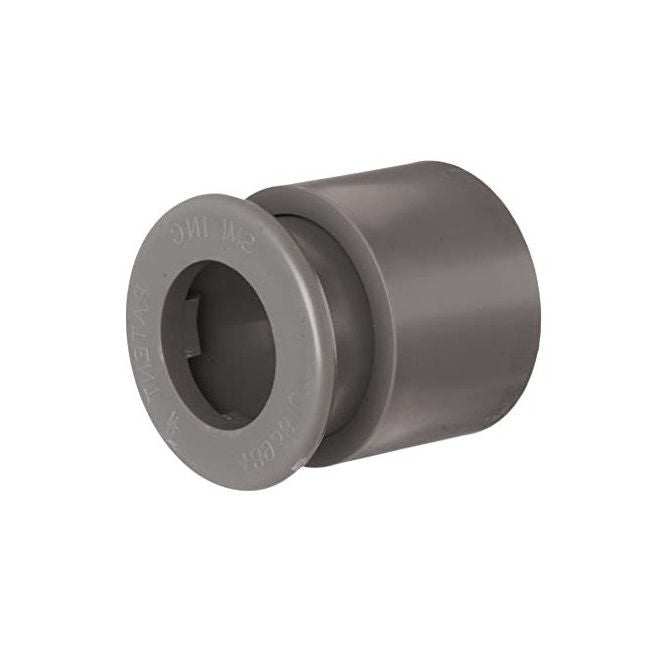

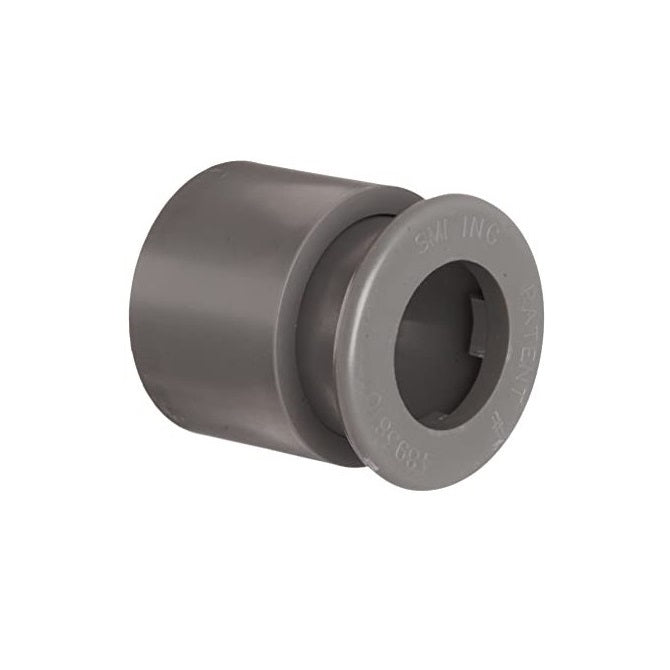

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
76.200
mm
(Equiv. 3 in.) - Outside Diameter (D)
95.90
mm
(Equiv. 3.776 in.) - Overall Width (S)
50.3
mm
(Equiv. 1.98 in.) - Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z34-3000SC
- A7Z343000SC
- SMI3000
- SMI-3000
