CCF940RS - Datasheet

MBA

Product Data

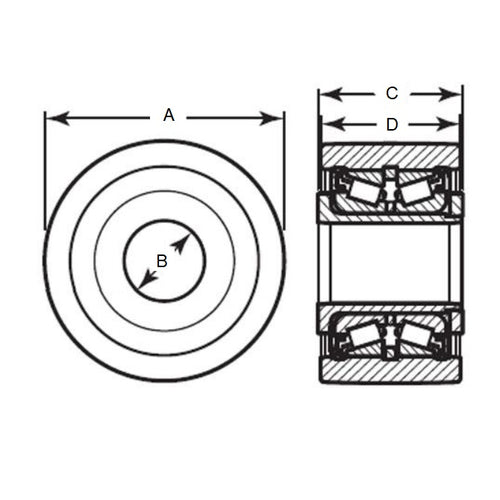

• Diameter (A) : 76.20 mm
• Overall Width (C) 46.03 mm
• Bore (B) 25.400 mm
• Width (D) 44.450 kg
• Dyanmic Radial Load 9070.000 kg
• Dynamic Thrust Load 5440.000
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Pressure Roller Information

Cross References

• Reid Tool® CCF-940
• CCF940
