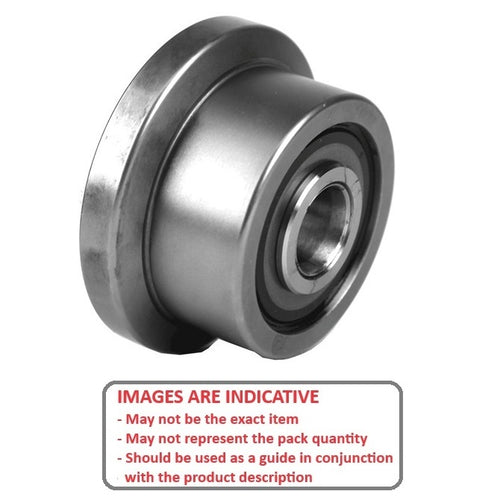

CCF950RS - Datasheet

MBA

Product Data

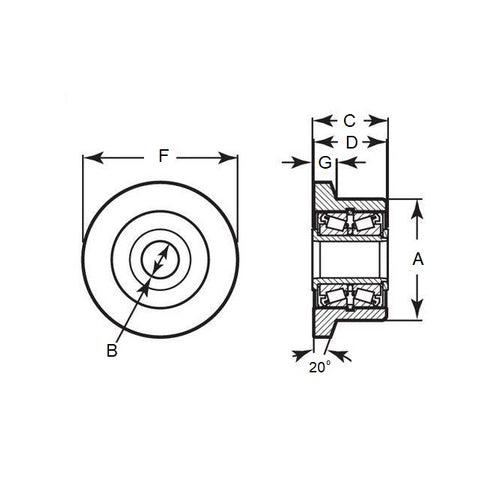

• Diameter (A) : 76.200 mm
  (Equiv. 3 in.)
• Overall Width (C) 46.025 mm
  (Equiv. 1.812 in.)
• Bore (B) 25.400 mm
  (Equiv. 1 in.)
• Width (D) 44.450 mm
• Flange Diameter (F) 100.000 mm
• Flange Width (G) 15.088 mm
• Dyanmic Radial Load 9070.000 kg
• Dynamic Thrust Load 5440.000 kg
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Pressure Roller Information

Cross References

• 6321K41
• CCF950
• CCF-950
