RR-1509RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

    Product Data

    • Diameter (A) : 76.200 mm
      (Equiv. 3 in.)
    • Height (B) 76.200 mm
      (Equiv. 3 in.)
    • Thread 1/2-13 UNC (12.7mm)
    • Thread Length 31.750 mm
    • End Flat with radiused Edges
    • Durometer 80A
    • Colour Black
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

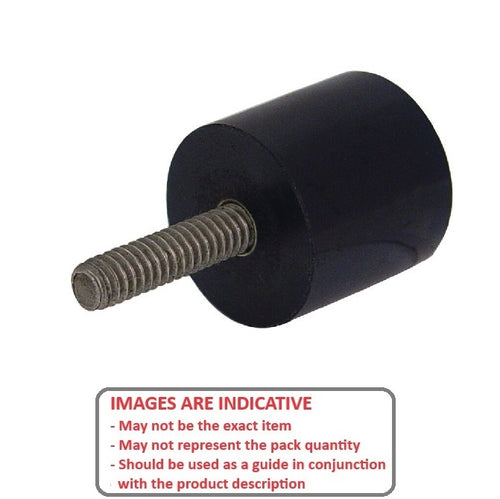

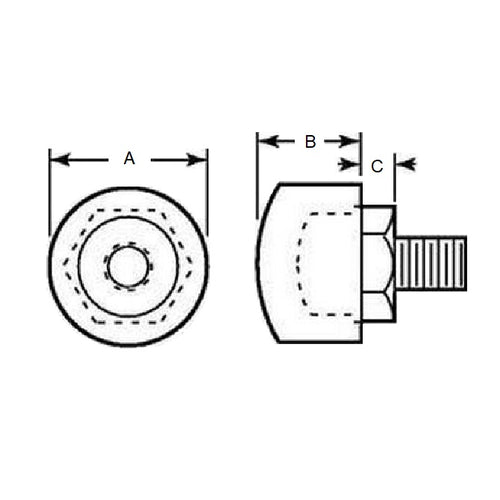

      RR-1509RSDiagramRR-1509RSImage
